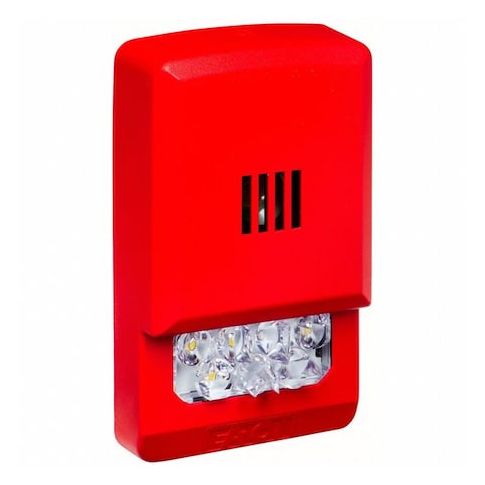

Horn Strobe, Horn, Continuous/Pulse, 24V, 86 dBA, Plastic, Red, Wall Mount MPN:ELHSR-N

The EATON ELHSR-N is a 24V horn strobe for indoor wall mounting that combines audible and visual signaling in one device. It features a red plastic housing with a clear Lexan lens, an 86 dBA horn output, and an LED strobe with selectable light intensity settings. The unit supports continuous and pulse sound patterns and is configured for direct-wire installation.

Key Features:

• Audible and visual signaling in a horn and strobe combination unit
• 86 dBA sound output
• Two sound patterns with continuous and pulse operation, including continuous T3 and T3/T4
• LED strobe with selectable light intensity
• Selectable light intensity settings of 15 cd, 30 cd, 75 cd, 110 cd, 135 cd, or 185 cd
• LED lamp rated life: 100,000 hr.
• 24V operation, 5 W, with operating current values of 0.022 A, 0.030 A, 0.060 A, 0.086 A, 0.125 A, and 0.185 A DC
• Red plastic housing with clear Lexan lens
• Surface wall mounting with mounting plate included
• Operating temperature range: 32°F to 122°F
• FCC, RoHS, UL Listed, and ULC
