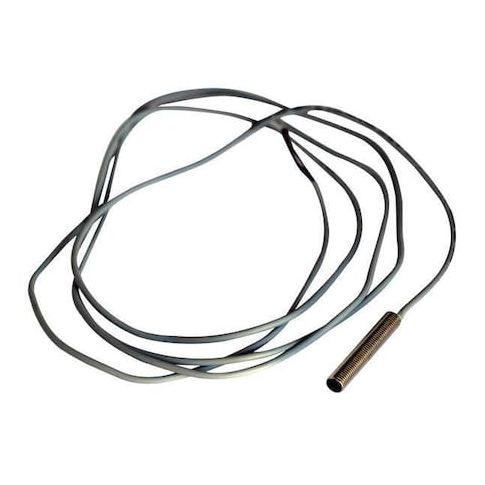

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded MPN:E57-08GS01-G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8984771
Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded
This inductive proximity sensor is a compact, cylindrical device that detects the presence or absence of metal objects within a 1 mm range. Its 2,000 Hz operating frequency and 3-wire PNP output circuit make it suitable for various applications, including industrial automation, robotics, and material handling. The sensor's shielded design and IP67/IP69K ratings ensure reliable performance in harsh environments. With a maximum current load of 100mA and operating temperature range of -13°F to 158°F, this sensor is ideal for use in a wide range of industries, including manufacturing, logistics, and food processing.
Top product features:
- Cylindrical design for easy installation in tight spaces
- Detects objects within 1 mm distance
- Operates at frequencies up to 2,000 Hz
Top product applications:
- Automotive parts inspection
- Industrial automation
- Medical device monitoring
Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 1 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 6P, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 45 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 5.50
- Package Height: 1.00
- Package Weight: 0.13
Product info last updated on February 14, 2026 5:35pm UTC
Category: Industrial Electrical Controls and Automation
