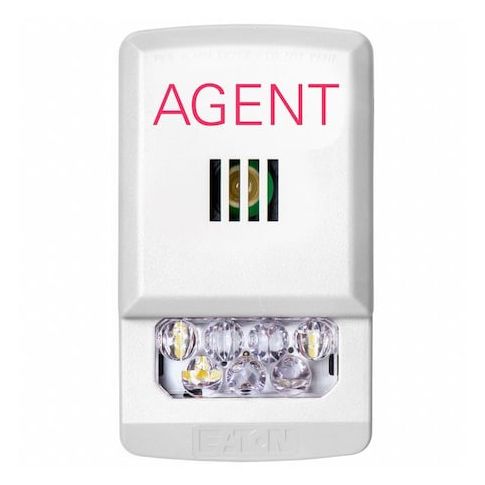

Horn Strobe, Horn, Continuous/Pulse, 24V, 86 dBA, Plastic, White, Wall Mount MPN:ELHSW-A
Free Shipping
In Stock
The Eaton ELUXA HORN STROBE is a versatile and reliable warning device that combines a loud horn with a high-intensity strobe light. Ideal for use in industrial, commercial, or residential settings, this unit is designed to grab attention in emergency situations. Its 86 dBA sound rating and bright strobe light ensure maximum visibility and audibility. Wall-mountable and easy to install, the ELUXA HORN STROBE is perfect for use in areas such as factories, warehouses, schools, and healthcare facilities where safety and alertness are crucial. Its compact design and 24V power make it a convenient and energy-efficient solution for a variety of applications.
Top product features:
- Horn strobe emits a 24V signal to activate the strobe function.
- Produces 86 dBA sound to alert users.
- Has a continuous/pulse function to provide multiple alarm options.
Top product applications:
- Industrial Security Systems
- Emergency Exit Signaling
- Fire Alarm Systems
The EATON ELHSW-A is a 24V horn strobe for indoor wall-mount signaling applications. It combines an audible horn and LED strobe in one unit, with continuous or pulse sound operation, 86 dBA output at 10 ft, and selectable light intensity settings. The white plastic housing and clear Lexan lens are intended for visible and audible signaling in a single device.
Key Features:
- Audible/visual signaling: Horn and strobe combination with horn sound style and strobe light operating mode.
- Sound output: 86 dBA maximum alarm volume at 10 ft.
- Sound patterns: 2 sound patterns with continuous/pulse operation
- includes Continuous T3 and T3/T4.
- Selectable brightness: Light intensity settings of 15 cd, 30 cd, 75 cd, 110 cd, 135 cd, and 185 cd.
- Light source: LED strobe with supplier-rated lamp life: 100,000 hr.
- Electrical rating: 24V operating voltage, 5 W power rating.
- Current draw: 0.022 A @ DC, 0.030 A @ DC, 0.060 A @ DC, 0.086 A @ DC, 0.125 A @ DC, 0.185 A @ DC.
- Construction: White plastic housing with clear Lexan lens.
- Mounting: Surface-mount, wall installation
- mounting plate included.
- Rated operating temperature range: 32 Degrees to 122 Degrees F.
- Standards: FCC, RoHS, UL Listed, ULC.
- Additional features: Fire and CO signaling in 1 device.
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.00
- Package Height: 5.00
- Package Weight: 0.50
