Molded Case Circuit Breaker, PDG Series, 20A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve MPN:PDG23G0020TFFL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G800901955
Molded Case Circuit Breaker, PDG Series, 20A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve

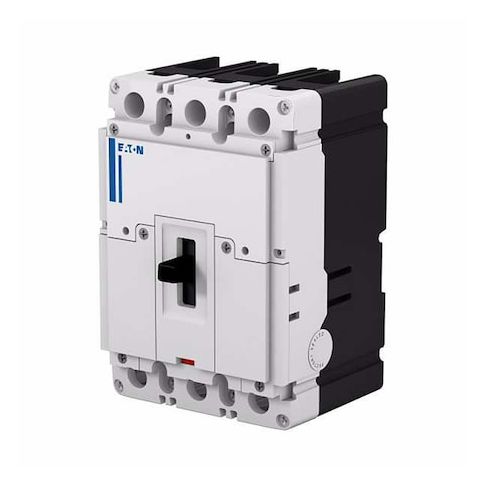

Protect your electrical systems with the Eaton PDG Series 20A 3-Pole Molded Case Circuit Breaker. This reliable breaker is designed for use in a variety of applications, including commercial and industrial settings, and can handle 35kA at 480V AC. With a thermal magnetic trip type and instantaneous trip fixed, it provides fast and effective protection against overloads and short circuits. The breaker's compact size and standard terminals make it easy to install and integrate into existing systems, while its wide operating temperature range ensures reliable performance in harsh environments. Ideal for use in panelboards and switchgear.
Top product features:
- Three pole circuit breaker design allows for three-phase power distribution and control
- Thermal magnetic trip type provides fast and reliable overload protection
- Instantaneous trip fixed feature ensures quick disconnection in case of a short circuit
Top product applications:
- Power Distribution Systems
- Commercial and Industrial Buildings
- Data Centers and Server Rooms
Circuit Breaker, 20 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 35 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Terminals Load Only, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 225A/Frame 2, Height 6 in, Width 4.11 in, Depth 3.5 in, Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 4.00
Product info last updated on February 24, 2026 9:25am UTC
Category: Circuit Protection
