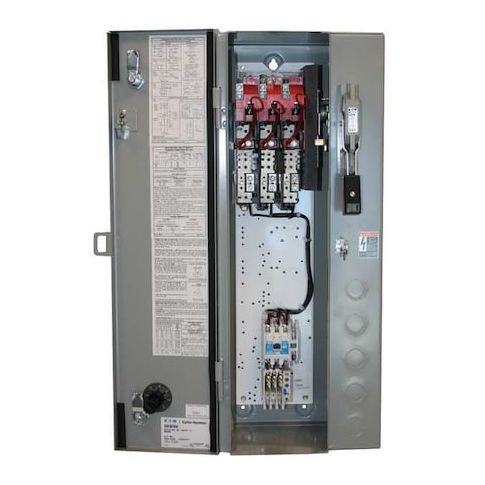

NEMA Fusible Str, Size 2, 120V Coil, 3R Enc MPN:ECN1622AAD-R63/D
NEMA Fusible Str, Size 2, 120V Coil, 3R Enc
This NEMA Fusible Str, Size 2, 120V Coil, 3R Enc, from Eaton, is a reliable and efficient combination starter designed for use in various industrial applications. It offers a 3R enclosure rating, suitable for harsh environments, and a maximum voltage rating of 600V AC. With a current AC of 45A and a horsepower rating of 25 hp at 600V AC, this starter provides a powerful solution for demanding applications. Its non-reversing capability and 1NO auxiliary contact form make it ideal for use in hazardous locations, providing a safe and reliable operation.
Top product features:
- NEMA Enclosure Rating 3R provides a level of protection against environmental factors such as dust and water.
- Short Circuit Protection Fusible Disconnect helps prevent damage to the product and surrounding equipment in the event of an electrical fault.
- Trip Class 10/20/30 allows for customizable overcurrent protection settings to suit specific user needs.
Top product applications:
- Motor control in a 3-phase system at 600V AC
- Motor control in a 3-phase system at 208V AC
- Motor control in a single-phase system at 120V AC
NEMA Combination Starter, Coil Voltage 110/120V AC, Current AC 45 A, Horsepower @ Three Phase - 600V AC 25 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 3R, NEMA Size 2, Hazardous Location Specification Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form 1NO, Short Circuit Protection Fusible Disconnect, Includes Control Transformer No, Trip Class 10/20/30, Horsepower @ Three Phase - 208V AC 10 hp, Control Transformer Voltage Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.12
- Package Width: 11.62
- Package Height: 10.25
- Package Weight: 50.00
Product info last updated on February 25, 2026 1:51am UTC
Category: Industrial Electrical Controls and Automation
