NEMA Fusible Str, Size 1, 120V Coil, 1 Enc MPN:ECN1611AAB-R63/C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6365685

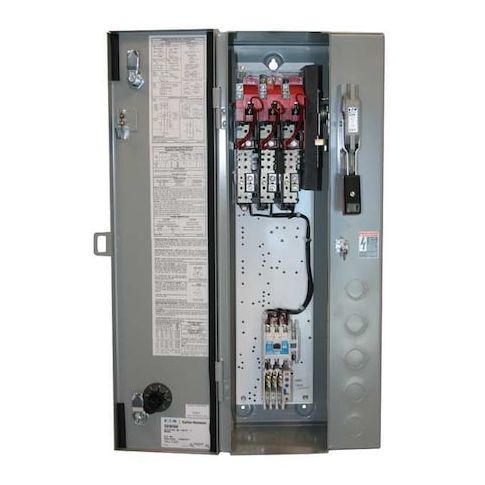

NEMA Fusible Str, Size 1, 120V Coil, 1 Enc
This NEMA Fusible Str, Size 1, 120V Coil from Eaton is a reliable and efficient starter for industrial applications. Suitable for use in hazardous locations, it features a NEMA Enclosure Rating 1 and a maximum voltage rating of 600V AC. With a current rating of 27A, it can handle up to 10 horsepower at 600V AC or 7.5 horsepower at 208V AC. The starter also includes a short circuit protection fusible disconnect and 1NO auxiliary contact form. Ideal for use in manufacturing, oil and gas, and other industrial settings, this starter provides a safe and reliable solution for motor control.
Top product features:
- Provides short circuit protection through fusible disconnect
- Has a NEMA enclosure rating of 1 for dust and weather protection
- Supports three-phase operation at 600V AC with a maximum horsepower rating of 10 hp
Top product applications:
- Motor control in industrial settings
- Industrial electrical panel assemblies
- Power distribution systems in commercial facilities
NEMA Combination Starter, Coil Voltage 110/120V AC, Current AC 27 A, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 1, NEMA Size 1, Hazardous Location Specification Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form 1NO, Short Circuit Protection Fusible Disconnect, Includes Control Transformer No, Trip Class 10/20/30, Horsepower @ Three Phase - 208V AC 7 1/2 hp, Control Transformer Voltage Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.60
- Package Width: 12.10
- Package Height: 11.20
- Package Weight: 38.20
Product info last updated on February 4, 2026 6:43am UTC
Category: Industrial Electrical Controls and Automation
