NEMA Fusible Str, Size 0, 120V Coil, 1 Enc MPN:ECN16A1AAC-R63/B

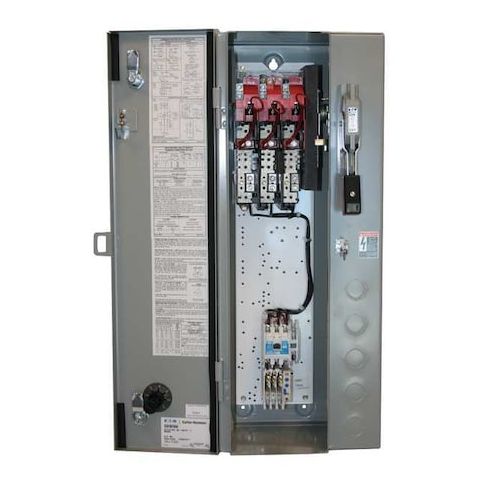

NEMA Fusible Str, Size 0, 120V Coil, 1 Enc
The Eaton NEMA Fusible Str, Size 0, 120V Coil, 1 Enc is a reliable and efficient combination starter designed for use in a variety of applications. Suitable for 600V AC three-phase systems, it provides a maximum horsepower rating of 2 hp at 600V AC and 1 1/2 hp at 208V AC. The non-reversing starter features a NEMA enclosure rating of 1 and a short circuit protection system. Ideal for use in commercial and industrial settings, this starter is a cost-effective solution for motor control and protection. Its compact design and easy installation make it a convenient choice for many applications.
Top product features:
- NEMA Enclosure Rating 1 provides a high level of protection against environmental factors.
- Short Circuit Protection Fusible Disconnect allows for safe and easy shutdown in the event of an electrical fault.
- Horsepower @ Three Phase 600V AC 2 hp enables the product to handle high-power applications.
Top product applications:
- Industrial control systems
- Motor control panels
- Machine tool applications
NEMA Combination Starter, Coil Voltage 110/120V AC, Current AC 30 A, Horsepower @ Three Phase - 600V AC 2 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 1, NEMA Size 00, Hazardous Location Specification Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form 1NO, Short Circuit Protection Fusible Disconnect, Includes Control Transformer No, Trip Class 10/20/30, Horsepower @ Three Phase - 208V AC 1 1/2 hp, Control Transformer Voltage Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.12
- Package Width: 11.62
- Package Height: 10.25
- Package Weight: 45.00
Product info last updated on February 2, 2026 2:34pm UTC
Category: Industrial Electrical Controls and Automation
