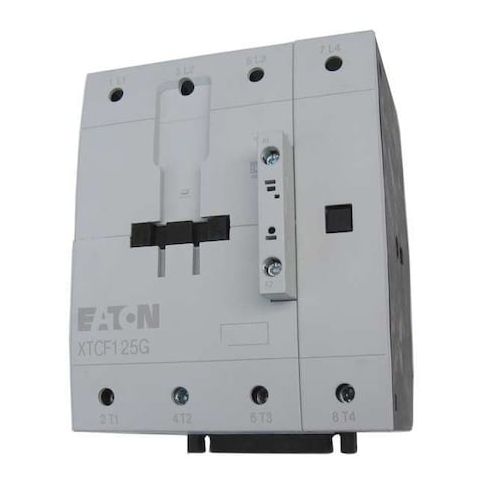

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 4 P, Non-Reversing, Screw MPN:XTCF200G00T

• The Eaton IEC Magnetic Contactor is an IEC-style, electrically operated switching device used to control power circuits. This 4-pole, non-reversing model uses a 24 V AC coil and has no auxiliary contacts. It features screw-terminal wiring and mounting on DIN Rail or Panel, with Frame G size in the XT series. The unit is rated for operation within the specified voltage range of 690 V AC and 50/60 Hz, equipped with a surge suppression component meeting industry standards, and is provided without an enclosure.

  - Action: Non-Reversing

• - Auxiliary Contact Form: No Auxiliary Contacts
• - Coil Voltage: 24V AC
• - Coil Volts: 24 V AC
• - Contactor Style: IEC
• - Depth: 5.59 in
• - Embedded Surge Suppressor: Equipped with a surge suppression component meeting industry standards
• - Enclosure NEMA Rating: No Enclosure
• - Frame / Series / Class / Code: Frame G, XT Series
• - Frame Size: G
• - Frequency: 50/60 Hz
• - Full Load Amps-Inductive: 115 A
• - Full Load Amps-Resistive: 200 A
• - Full Load Current - Inductive: 115 A
• - Full Load Current - Resistive: 200 A
• - HP @ 1 Phase - 230V: 40 hp
• - HP @ 1 Phase - 240V: 40 hp
• - HP @ 3 Phase - 208V: 40 hp
• - HP @ 3 Phase - 240V: 50 hp
• - HP @ 3 Phase - 480V: 100 hp
• - HP @ 3 Phase - 575V: 125 hp
• - Height: 6.69 in
• - Mechanical Operating Durability: Mechanical durability rating based on testing standards
• actual lifespan may vary depending on usage conditions
• - Maximum Operating Temperature: as specified
• actual performance may vary under different conditions
• - Maximum Voltage Rating: According to specifications
• does not imply guaranteed performance beyond this value
• - Mounting Style: DIN Rail, Panel
• - Mounting Hole Diameter: 0.24 in
• - Mounting Hole Distance - Height: 6.14 in
• - Mounting Hole Distance - Width: 2.76 in
• - Minimum Operating Temperature: -13 Degrees F
• - NEMA Enclosure Rating: No Enclosure
• - IP Rating: IP20
• - Number of Auxillary Contacts: 0
• - Phase: Three
• - Response Time: 28 to 33 msec (AC Closing), 30 msec (DC Opening), 35 msec (DC Closing), 35 to 41 msec (AC Opening)
• - Reversing: No
• - Reversing Capability: Non-Reversing
• - Standards: CE, CSA, EN/IEC 60947, RoHS, UL Listed
• - Terminal Connection Type: Screw
• - Width: 5.24 in
