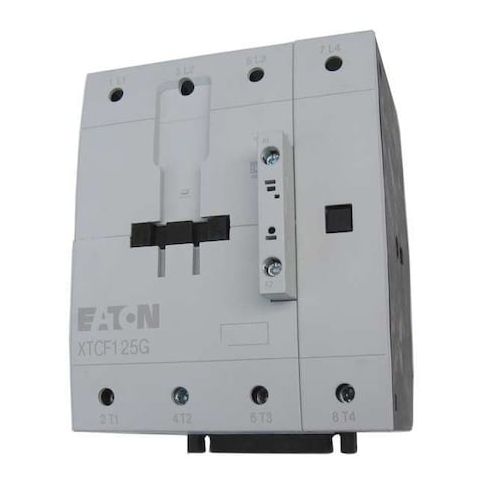

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 4 P, Non-Reversing, Screw MPN:XTCF125G00T
Free Shipping
In Stock
The Eaton IEC Magnetic Contactor is a reliable and efficient electrical control device designed for use in control panels, suitable for switching power circuits with motors and lighting loads. This 4-pole, non-reversing contactor features a 24V AC coil and no auxiliary contacts, making it a simple and effective solution for a variety of applications. With a durable design and high-quality construction, this contactor is perfect for use in industrial and commercial settings, providing reliable and consistent performance in a range of environments. Its compact size and easy mounting options make it a convenient choice for a variety of installations.
Top product features:
- The Eaton IEC Magnetic Contactor is a non-reversing electrical control device.
- It has a 24 V AC coil.
- It uses screw terminal connections for wiring.
Top product applications:
- Control panels
- Motors
- Lighting loads
The Eaton IEC Magnetic Contactor is a 4-pole, non-reversing electrical control device with a 24 V AC coil and no auxiliary contacts. It follows IEC standards and uses screw terminal connections for wiring. This module is rated for switching power circuits within specified load conditions in control panels, suitable for use with motors and lighting loads.
Key features
- - Action: Non-Reversing
- - Auxiliary Contacts: No
- - Coil Voltage: 24 V AC
- - Poles: 4
- - Frame Size / Frame: G (XT series)
- - Frequency: 50/60 Hz
- - Maximum Voltage Rating: 690 V AC
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Mounting Style: DIN Rail, Panel
- - Terminal Connection Type: Screw
- - Embedded Surge Suppressor: Yes
- - Operating Temperature Range: -13°F to 122°F (specified operating environment)
- - Mechanical Durability: Rated for up to 10 million operational cycles under standard testing conditions
- - Phase: Three
- - Standards: CE, CSA, EN/IEC 60947, RoHS, UL Listed
- - Dimensions: 6.69 in (H) x 5.24 in (W) x 6.89 in (D)
- - Mounting Details: Hole diameter 0.24 in
- hole spacing 6.14 in (H) x 2.76 in (W)
- - Auxiliary Contacts (count): 0
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 37 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 7.25
- Package Weight: 6.23
