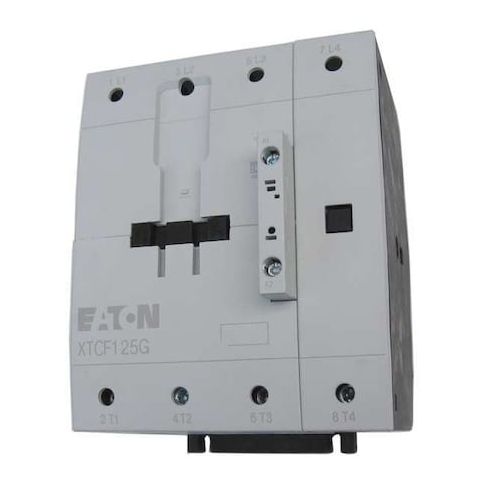

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 4 P, Non-Reversing, Screw MPN:XTCF080D00T
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial control and automation systems. Its four-pole design and 24V AC coil make it suitable for use in various industrial settings, while its non-reversing operation ensures safe and consistent control. The contactor's surge suppression component provides added protection against transient voltage events, ensuring optimal performance and extending the lifespan of the device. Ideal for use in control panels and on DIN rail, this contactor is perfect for applications requiring high reliability, efficiency, and safety.
Top product features:
- Operates non-reversing to prevent accidental motor start-ups and ensure safe operation.
- Equipped with a surge suppression component to mitigate transient voltage events and protect the device from damage.
- Has four poles to allow for switching of multiple loads or circuits with a single device, increasing efficiency and reducing the need for additional components.
Top product applications:
- Control Panel
- Industrial Automation
- Machine Control
The Eaton XT IEC contactor is an IEC magnetic contactor with four poles and a 24 V AC coil. It has no auxiliary contacts and uses screw terminals. Non-reversing in operation, it is designed for DIN rail or panel mounting and is part of the XT series (Frame D). The device has a maximum voltage rating of 690 V AC and is designed to operate within specified current ratings
- it includes a surge suppression component intended to mitigate transient voltage events.
- Coil voltage: 24 V AC
- - Action: Non-Reversing
- - Reversing: No
- - Poles: 4
- - Auxiliary contacts: No Auxiliary Contacts
- - Frame/Series: XT, Frame D
- - Mounting style: DIN Rail, Panel
- - Terminal connection: Screw
- - Maximum voltage rating: 690 V AC
- - Frequency: 50/60 Hz
- - Full Load Amps: 80 A (resistive), 50 A (inductive)
- - HP ratings: 15 hp (1P 230/240V), 15 hp (3P 208V), 20 hp (3P 240V), 40 hp (3P 480V), 50 hp (3P 575V/600V)
- - IP rating: IP20
- - Enclosure: No Enclosure
- - Embedded Surge Suppressor: Equipped with a surge suppression component that meets applicable standards
- - Certifications: CE Marked
- CSA Certified
- EN 60947
- IEC 60947
- RoHS
- UL Listed
- - Operating temperature: -13°F to 122°F
- - Mechanical durability: 10,000,000 cycles
- - Dimensions (approx.): Height 5.9 in
- Width 4.6 in
- Depth 2.2 in
- - Phase: 3
- - Item: IEC Magnetic Contactor
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 7.25
- Package Weight: 6.23
