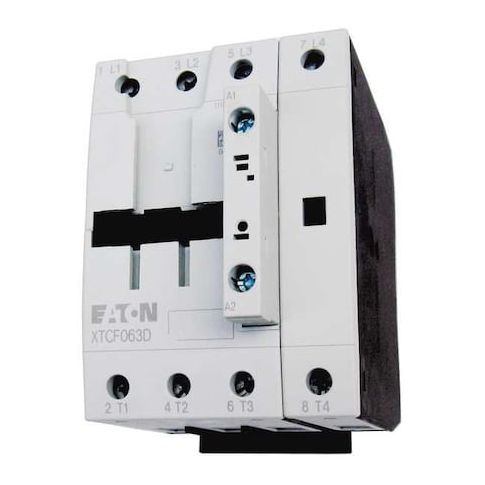

main product photo

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 4 P, Non-Reversing, Screw MPN:XTCF063D00T

Discount: See in Cart
Free Shipping
In Stock
Brand: Eaton
Part #: XTCF063D00T
UPC: 786685352510
SKU
510-G6362876
Regular Price $587.99 Special Price $419.99

BBB Accredited - ResellerRatings Elite Member - SBA Service-Disabled Veteran-Owned Certified

Add to Wish List Add to Compare
IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 4 P, Non-Reversing, Screw

The Eaton IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in IEC-standard control systems. Suitable for three-phase operation up to 690V at 50/60Hz, this four-pole, non-reversing device is ideal for applications where current flow needs to be controlled in one direction. With a 24V AC coil and screw terminal connections, it offers easy installation and compatibility with DIN Rail and panel mounting configurations. Its embedded surge suppressor and IP20 rating ensure safe and reliable operation, making it a versatile choice for a wide range of industrial and commercial applications.

Top product features:

  • Embedded Surge Suppressor protects the device from electrical surges and spikes
  • Non-Reversing action controls current flow in one direction, simplifying circuit control
  • Screw terminal connections enable easy and secure wiring for reliable operation

Top product applications:

  • Motor Control
  • HVAC Control
  • Industrial Automation

The Eaton IEC Magnetic Contactor is an electrically operated switch used to control power circuits in IEC-standard control systems. It is a four-pole, non-reversing device with a 24 V AC coil and screw terminal connections. This XT-series, Frame D contactor has no auxiliary contacts and includes an embedded surge suppressor, with no enclosure. It is rated for operation within the specified voltage and frequency ranges and is compatible with DIN Rail and panel mounting configurations. It is designed for three-phase operation up to 690 V at 50/60 Hz and supports DIN Rail or Panel mounting.

- Action: Non-Reversing (controls current flow in one direction)

  • - Auxiliary Contacts: No Auxiliary Contacts
  • - Coil Volts: 24 V AC
  • - Contactor Style: IEC
  • - Frame Size / Frame / Series: Frame D / XT
  • - Depth (Overall): 5.79 in
  • - Height (Overall): 4.53 in
  • - Width (Overall): 3.35 in
  • - Embedded Surge Suppressor: Yes
  • - Enclosure: No Enclosure
  • - IP Rating: IP20
  • - Phase: Three
  • - Reversing: No
  • - Reversing Capability: Non-Reversing
  • - Frequency: 50/60 Hz
  • - Maximum Voltage Rating: 690 V AC
  • - Number of Poles: 4
  • - Number of Auxillary Contacts: 0
  • - Standards: CE, CSA, EN/IEC 60947, RoHS, UL Listed
  • - Terminal Connection Type: Screw
  • - Mounting Style: DIN Rail, Panel
  • - Mounting Hole Diameter: 0.16 in
  • - Mounting Hole Distance - Height: 4.13 in
  • - Mounting Hole Distance - Width: 1.77 in
  • - Mechanical Operating Durability: 10,000,000 cycles
  • - Maximum Operating Temperature: 122 Degrees F
  • - Minimum Operating Temperature: -13 Degrees F
  • - Full Load Amps - Inductive: 40 A
  • - Full Load Amps - Resistive: 63 A
  • - HP @ 1 Phase - 230V: 10 hp
  • - HP @ 1 Phase - 240V: 10 hp
  • - HP @ 3 Phase - 208V: 10 hp
  • - HP @ 3 Phase - 240V: 15 hp
  • - HP @ 3 Phase - 480V: 30 hp
  • - HP @ 3 Phase - 575V: 40 hp


    • Additional Information

    • Country of Origin: DE
    • Drop Ship Item: Yes
    • Blind Ship Eligible: No
    • LTL Freight Required: No
    • Lead Time: Ships in 37 days
    • Minimum Order Quantity: 1
    • Unit of Measure: EA
    • Package Length: 7.00
    • Package Width: 4.00
    • Package Height: 7.25
    • Package Weight: 6.23
    Product info last updated on March 27, 2026 5:18pm UTC Category: Industrial Electrical Controls and Automation
