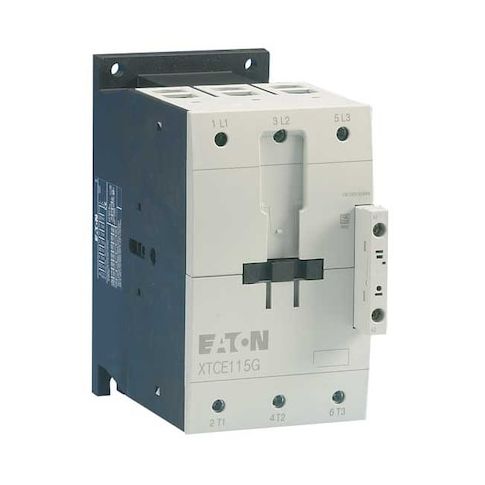

IEC Magnetic Contactor, No Auxiliary Contacts, 480V AC, 3 P, Non-Reversing, Screw MPN:XTCE170G00C
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for a wide range of industrial applications. Suitable for use in 480V AC systems, this three-pole, non-reversing contactor provides smooth and consistent switching performance. With a high amperage rating and robust mechanical durability, it can handle demanding load conditions with ease. The contactor's compact design and screw terminal connections make it easy to install and integrate into existing systems. Ideal for use in manufacturing, processing, and power distribution applications, the Eaton XT IEC contactor offers reliable and efficient switching performance in a variety of settings.
Top product features:
- Three-pole, non-reversing IEC magnetic switch with a 480 V AC coil.
- Screw terminals provide a secure and reliable connection.
- Non-reversing action ensures the contactor only operates in one direction.
Top product applications:
- Industrial Automation Systems
- Electrical Distribution Panels
- Power Generation and Distribution Systems
The Eaton XT IEC contactor is a three-pole, non-reversing IEC magnetic switch with a 480 V AC coil. It uses screw terminals and has no auxiliary contacts. Part of the XT series (Frame G), compatible with DIN Rail or Panel mounting as specified, rated for operation within the specified load conditions, and rated for operation within the specified voltage and frequency ranges. It conforms to IP20 ingress protection standards when installed accordingly.
- Action: Non-Reversing
- - Reversing: No
- - Poles: 3
- - Coil voltage: 480 V AC
- - Amperage rating: 170 A (full-load inductive)
- 190 A (full-load resistive)
- - Auxiliary contacts: No auxiliary contacts
- - Frame: G
- - Series: XT
- - Termination: Screw terminals
- - Enclosure: No Enclosure
- - IP rating: IP20
- - Maximum voltage rating: 690 V AC
- - Frequency: 50/60 Hz
- - Certifications: IEC 60947
- CSA Certified
- EN 60947
- UL Listed
- CE Marked
- RoHS
- - Mechanical durability: 10,000,000 cycles
- - Electrical durability: 300 (AC-4 400V Ie)
- 800 (AC-1 400V Ie)
- 800 (AC-3 400V Ie)
- - Operating temperature: -13°F to 122°F
- - Mounting: DIN Rail
- Panel
- - Dimensions: 6.89 in H x 6.73 in W x 3.58 in D
- - Mounting hole diameter: 0.24 in
- - Response time: DC opening <30 ms
- AC closing <33 ms
- DC closing <35 ms
- AC opening <41 ms
- - Product name: Eaton XT IEC contactor
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 7.25
- Package Weight: 6.23
