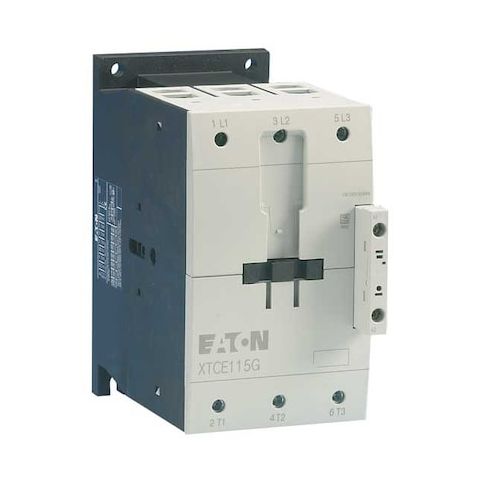

IEC Magnetic Contactor, No Auxiliary Contacts, 480V AC, 3 P, Non-Reversing, Screw MPN:XTCE150G00C
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in accordance with IEC standards. Suitable for use in a variety of applications, including industrial control and automation systems, this three-pole, non-reversing contactor features a 480V AC coil and screw terminal connections. With a high amperage rating and robust construction, it can handle demanding electrical loads with ease. Its compact design and DIN Rail/Panel mounting options make it easy to integrate into existing systems, providing a reliable and efficient solution for applications requiring high power switching capabilities.
Top product features:
- The Eaton XT IEC contactor is a three-pole, non-reversing device.
- It features a 480 V AC coil.
- It has screw terminal connections.
Top product applications:
- Industrial Automation
- High Power Distribution Systems
- Power Generation and Transmission
The Eaton XT IEC contactor is an IEC magnetic contactor (three-pole, non-reversing) used to switch power circuits in accordance with IEC standards. It features a 480 V AC coil, screw terminal connections, and no auxiliary contacts. This frame G, XT series device is rated for operation within the specified voltage ranges, designed to operate within standard frequency ranges, and conforms to recognized standards and certifications.
Key features
- - Coil voltage: 480 V AC
- - Amperage rating: 150 A (full load inductive)
- 190 A (full load resistive)
- - Poles and action: 3 poles
- Non-Reversing
- - Auxiliary contacts: None
- - Connection: Screw terminals
- - Frame/Series: Frame G, XT series
- - Mounting: DIN Rail, Panel
- - Enclosure: IP20
- No enclosure
- - Maximum voltage rating: 690 V AC
- - Frequency: 50/60 Hz
- - Phase: 3
- - Certifications: UL Listed
- EN 60947
- CSA Certified
- IEC 60947
- - Dimensions: Height 6.89 in
- Width 3.58 in
- Depth 6.73 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 7.25
- Package Weight: 6.23
