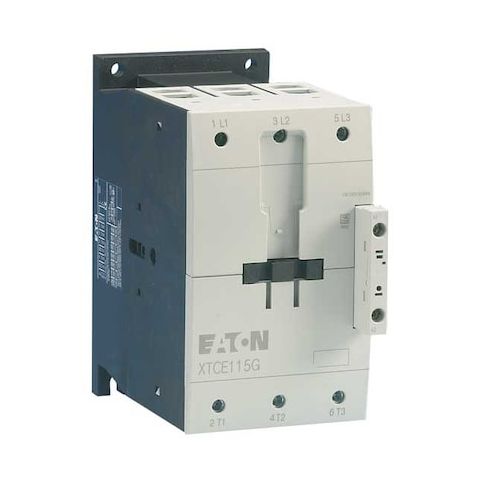

IEC Magnetic Contactor, No Auxiliary Contacts, 480V AC, 3 P, Non-Reversing, Screw MPN:XTCE115G00C
Free Shipping
In Stock
The Eaton XT IEC contactor is a reliable and efficient solution for switching power circuits in various industrial applications. Its 3-pole, non-reversing design ensures safe and controlled operation, while its 480 V AC coil and screw terminal connections provide easy installation and maintenance. Suitable for use in a range of environments, from 50/60 Hz, this contactor is ideal for applications such as motor control, lighting, and HVAC systems. With its robust design and high cycle life of 10 million, the Eaton XT IEC contactor provides long-lasting performance and reliability, making it a valuable addition to any industrial control system.
Top product features:
- The Eaton XT IEC contactor features a 480 V AC coil.
- It has screw terminal connections.
- It is compatible with DIN Rail and panel mounting methods.
Top product applications:
- Power Distribution Systems
- Industrial Automation and Control Systems
- High-Current Power Control Applications
The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor rated for switching power circuits within specified parameters. It features a 480 V AC coil, screw terminal connections, and a frame size G within the XT series, with a maximum voltage rating of 690 V AC and operation at 50/60 Hz. It is compatible with DIN Rail and panel mounting methods and carries multiple safety/compliance marks.
Key features
- - Type/operation: 3 poles
- Non-Reversing
- - Coil voltage: 480 V AC
- - Amperage/Load: Full Load Amps - Inductive 115 A
- Full Load Amps - Resistive 160 A
- - Auxiliary contacts: No Auxiliary Contacts
- - Electrical connection: Screw terminals
- - Certifications/compliances: UL Listed
- CSA Certified
- IEC Rated
- CE Marked
- - Enclosure: No Enclosure (IP20)
- - Series/Frame: XT series
- Frame G
- - Mounting style: DIN Rail, Panel
- - Operating frequency: 50/60 Hz
- - Phase: 3
- - Mechanical/Electrical durability: 10,000,000 cycles
- Electrical: 300 (AC-4 400V), 800 (AC-1 400V), 800 (AC-3 400V)
- - Embedded surge suppressor: Yes
- - Maximum voltage rating: 690 V AC
- - Maximum/minimum operating temperatures: 122 °F max
- -13 °F min
- - Dimensions (HxWxD): 6.69 in x 4.37 in x 6.3 in (170 mm x 111 mm x 160 mm)
- - Product name/series: Eaton XT IEC contactor
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 7.25
- Package Weight: 6.23
