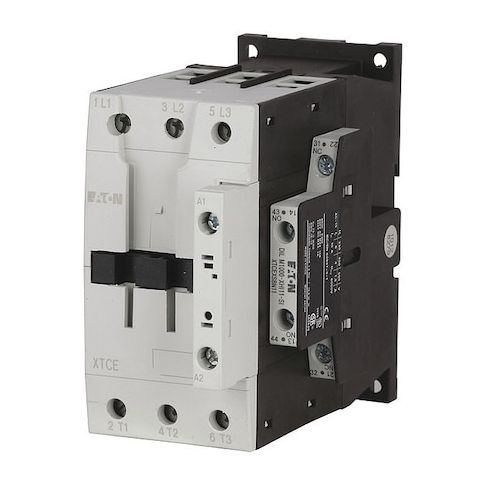

IEC Magnetic Contactor, No Auxiliary Contacts, 480V AC, 3 P, Non-Reversing, Screw MPN:XTCE072D00C
Free Shipping
In Stock
The Eaton XT IEC Magnetic Contactor is a reliable and efficient switching device for industrial applications. Ideal for use in 3-phase systems, this contactor features a 480V AC coil and a maximum voltage rating of 690V AC. Its non-reversing action ensures consistent and controlled operation, making it suitable for use in a variety of applications, including motor control and power distribution. With its compact design and screw terminals, this contactor is easy to install and integrate into existing systems, providing a reliable and efficient solution for industrial control needs.
Top product features:
- The Eaton XT IEC contactor features a 3-pole, non-reversing configuration for reliable and controlled switching of electrical circuits.
- It has a 480V AC coil for efficient operation within high-voltage applications.
- The contactor is designed for DIN Rail or Panel mounting without an enclosure, providing flexibility and space-saving installation options.
Top product applications:
- Industrial Automation Systems
- Motor Control Centers
- High-Voltage Power Distribution Systems
The Eaton XT IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It is a 3-pole, non-reversing contactor with a 480V AC coil and a maximum voltage rating of 690V AC, featuring screw terminals and no auxiliary contacts. This unit is part of the XT series (Frame D) and supports DIN Rail or Panel mounting without an enclosure.
- Action: Non-Reversing
- - Phase: 3 (3-phase)
- - Poles: 3
- - Coil Voltage: 480V AC
- - Amperage Rating: 72A
- - Full Load Amps (Inductive): 72A
- - Full Load Amps (Resistive): 98A
- - Maximum Voltage Rating: 690V AC
- - Contact Configuration: 0 NO, 0 NC
- - Auxiliary Contacts: No
- - Mounting: DIN Rail, Panel
- - Electrical Connection: Screw Terminals
- - Frame Size / Series: Frame D / XT
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Certifications/Standards: IEC 60947
- UL Listed
- EN 60947
- CSA Certified
- CE Marked
- RoHS
- - Mechanical Operating Durability: 10000000 cycles
- - Electrical Operating Durability: 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)
- - Product Name: Eaton XT IEC contactor
- - Dimensions (HxWxD): 5.55 in x 2.76 in x 4.65 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 7.25
- Package Weight: 6.23
