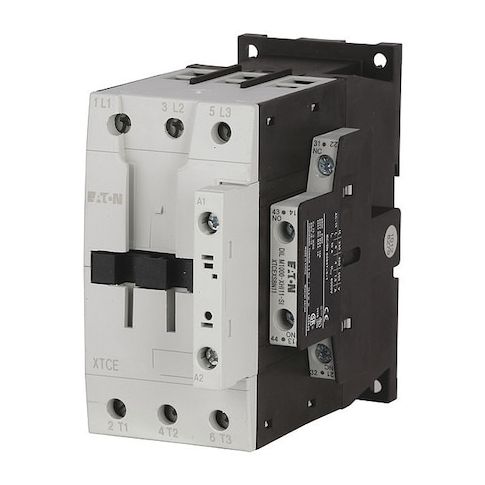

IEC Magnetic Contactor, No Auxiliary Contacts, 208V AC, 3 P, Non-Reversing, Screw MPN:XTCE072D00E

• The Eaton XT IEC contactor is an IEC magnetic contactor, an electrically operated switching device rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close contacts, suitable for switching motors, lighting, and other compatible loads when used as intended. The unit features a compact design suitable for use in control panels requiring standardized sizing and interchangeability.

  - Action: Non-Reversing

• - Reversing: No
• - Poles: 3
• - Coil Voltage: 208V AC
• - Amperage Rating: 72A (Inductive)
• 98A (Resistive)
• - Aux Contacts: No Auxiliary Contacts
• - Contactor Type: Full voltage non-reversing contactor
• - Frame/Series: Frame D / XT
• - Electrical Connection: Screw Terminals
• - Certifications: CSA Certified
• UL Listed
• EN 60947
• IEC 60947
• CE Marked
• RoHS
• - Max Voltage Rating: 690V AC
• - IP Rating: IP20
• - Mounting Style: DIN Rail, Panel
• - Enclosure: No Enclosure
• - Operating Temperature: -13°F to 122°F
• - Mechanical/Electrical Durability: 10,000,000 cycles
• - Phase: 3
• - Frequency: 60 Hz
