Illuminated Push Button, 22mm, Green MPN:M22M-DL-G-K20-G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6210425

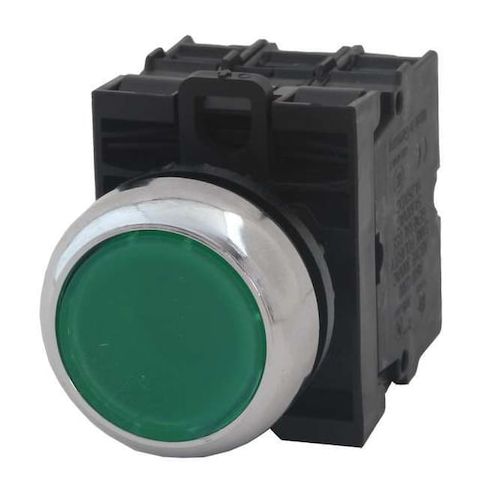

Illuminated Push Button, 22mm, Green
Eaton's 22mm Illuminated Push Button is a reliable and versatile solution for various applications. This momentary action push button features a green illuminated head and a metal bezel for durability and a professional look. With a rating of 3A @ 24 DC and 6A @ 230V AC, it can be used in a wide range of settings, from industrial control panels to commercial equipment. Its NEMA rating and IP66, IP67, and IP69K certifications ensure it can withstand harsh environments. Ideal for use in control panels, machines, and equipment, this push button provides a simple and intuitive way to control and monitor operations.
Top product features:
- Momentary Action: The push button has a momentary action, which means it only activates when pressed and releases when pressed again.
- Flush Button Type of Operator: The button has a flush design, allowing it to be mounted directly into a surface for a sleek and unobtrusive appearance.
- Two-NO Contact Form: The button has two normally open (NO) contacts, allowing it to be used in applications where a single press requires two separate connections.
Top product applications:
- Industrial Automation Systems
- Control Panels
- Power Distribution Systems
Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Metal, Contact Form 2NO, Bezel Chrome Die Cast Aluminum, Color Green, Contact Rating 3A @ 24 DC, 6A @ 230V AC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69K, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Terminal Connection Screw Clamp
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.50
- Package Weight: 0.15
Product info last updated on January 15, 2026 8:38am UTC
Category: Industrial Electrical Controls and Automation
