Overload Relay, 2NC/2NO, 1 A Min current, 5 A Max current, 690V AC MPN:C440A1A005SF00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G610041957
Overload Relay, 2NC/2NO, 1 A Min current, 5 A Max current, 690V AC

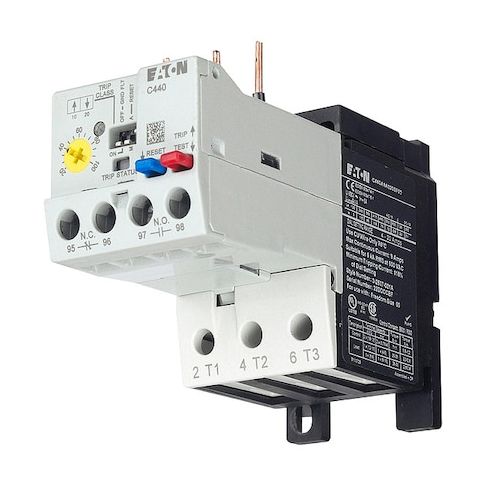

The Eaton 2NC/2NO Overload Relay is a reliable and efficient solution for protecting electrical circuits from overloads and short circuits. Its compact design and direct mounting to contactors make it ideal for use in a variety of applications, including industrial control panels and machinery. With a current range of 1-5 amps and a voltage rating of 690V AC, this overload relay provides precise protection and flexibility in a range of settings. Its auto-reset and manual reset capabilities ensure seamless operation, making it a valuable addition to any electrical system.
Top product features:
- 2NC/2NO auxiliary contact form provides two normally open and two normally closed contacts for control and monitoring applications.
- Maximum overload relay current setting of 5 A allows for adjustable protection against excessive current.
- Trip class 10/20/30 provides three levels of sensitivity for detecting overloads and short circuits.
Top product applications:
- Motor protection in industrial machinery
- Protection of electrical panels from overloads
- Monitoring and control of power distribution systems
Overload Relay, Auxiliary Contact Form 2NO/2NC, Maximum Overload Relay Current Setting 5 A, Minimum Overload Relay Current Setting 1 A, Trip Class 10/20/30, Maximum Voltage Rating 690V AC, NEMA Size 00, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series C25 Definite Purpose, Freedom, Frame Size Not Applicable
Additional Information
- Country of Origin: DO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 3.00
- Package Height: 6.50
- Package Weight: 1.00
Product info last updated on February 28, 2026 3:24am UTC
Category: Industrial Electrical Controls and Automation
