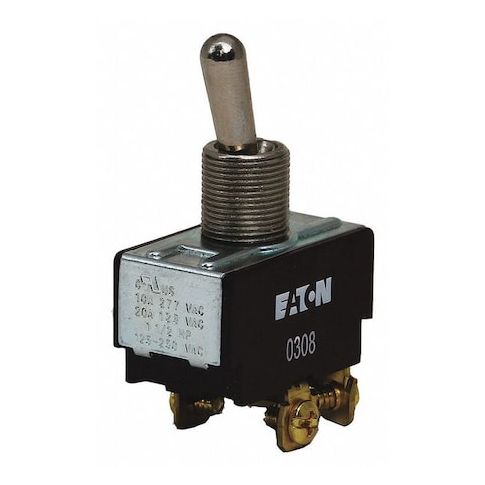

Toggle Switch, DPDT, 6 Connections, On/Off/On, 1 1/2 hp, 10A at 277V AC, 20A at 125V AC MPN:XTD4B2A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5306944
Toggle Switch, DPDT, 6 Connections, On/Off/On, 1 1/2 hp, 10A at 277V AC, 20A at 125V AC
This DPDT toggle switch is designed for versatile applications, including control of 1.5 horsepower motors and 125V AC circuits. With a robust 10A rating at 277V AC and 20A at 125V AC, it can handle demanding tasks. The switch features six connections and an on/off/on function, allowing for multiple control options. Its compact size and screw terminals make it easy to integrate into various systems. Suitable for use in industrial, commercial, and residential settings, this toggle switch offers reliable performance and meets RoHS and UL standards, ensuring a safe and efficient operation.
Top product features:
- DPDT toggle switch functionality allows for three-position switching
- The switch has 6 connections for multiple circuit control
- The switch is rated for 1 1/2 hp and can handle various AC and DC voltage levels
Top product applications:
- Motor Control
- Lighting Control
- Power Distribution
Toggle Switch, Contact Form DPDT, Number of Connections 6, Switch Function On/Off/On, AC Contact Rating 10 A @ 277 V, 15 A @ 28 V, 20 A @ 125 V, HP 1 1/2 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating 15 A @ 28 V, Actuator Length 0.64 in, Stem Length 0.47 in, Stem Dia. and Thread Size 0.500 in, Actuator Color Silver, Stem Color Silver, Standards RoHS, UL Listed, Includes Panel Mounting
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.25
- Package Width: 1.25
- Package Height: 0.75
- Package Weight: 0.13
Product info last updated on February 4, 2026 10:55pm UTC
Category: Industrial Electrical Controls and Automation
