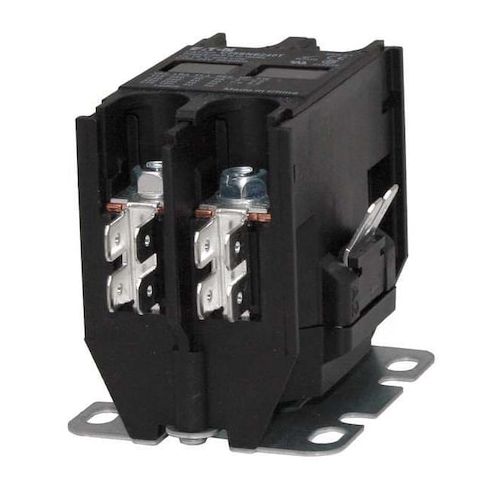

Definite Purpose Magnetic Contactor, 120V AC, 2 P, Non-Reversing, 1 Phase, Quick Connect MPN:G1C25BNB230A

• The EATON - G1C25BNB230A is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.




  • Action: The contactor functions as non-reversing where the current flow direction remains constant.
  • Coil Voltage: Requires a specific voltage range of 120V AC for effective engagement or disengagement of its electrical circuit.
  • Frequency: Rated for operation within the frequency range of 50/60 Hz, which may affect its compatibility with various power systems.
  • Full Load Amps-Inductive & Resistive: Rated for continuous operation at up to 30 A for inductive loads like motors or transformers and up to 40 A for resistive or heating loads. Overheating or damage can occur if these limits are exceeded.
  • Horsepower @ Single Phase - 120V & 240V AC: Compatible with controlling horsepower levels of up to 2 hp at a single-phase voltage supply of 120V and up to 5 hp at a single-phase voltage supply of 240V. Exceeding these values could result in product failure.
  • Mounting Position: Suitable for both horizontal and vertical installation positions. The orientation does not guarantee optimal performance nor safety
  • it depends on other factors related specifically to individual industrial applications.
  • Number of Poles: Has the capacity for simultaneous switching between two circuits, offering flexibility within specified operational parameters across diverse industrial applications.
