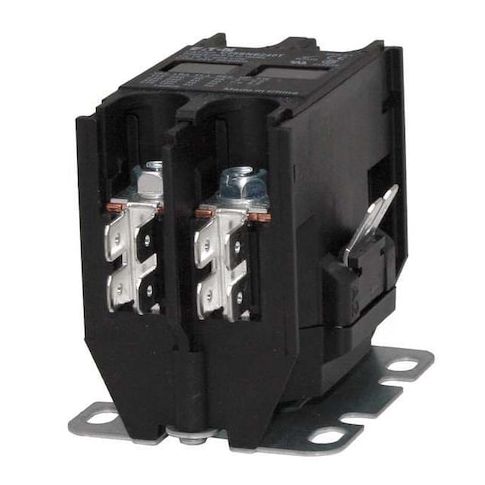

Definite Purpose Magnetic Contactor, 120V AC, 2 P, Non-Reversing, 1 Phase, Quick Connect MPN:C25BNB240A
Free Shipping
In Stock
The Eaton C25BNB240A is a reliable and efficient Definite Purpose Magnetic Contactor designed for heavy-duty applications in industries such as HVAC, data processing, and manufacturing. This device allows for precise control over power flow, ensuring smooth operation and reducing downtime. Its non-reversing action and 2-wire input control type provide added flexibility and ease of use. With a high power handling capability and quick connect terminal connections, this contactor is ideal for managing and automating machinery operations. Its CSA, RoHS, and UL Listed certifications ensure compliance with safety and performance standards, making it a trusted choice for professionals.
Top product features:
- Non-Reversing Action
- Constant current flow direction for reliable power control
- Quick Connect Terminal Connection Type
Top product applications:
- HVAC
- Data processing
- Manufacturing
The EATON - C25BNB240A is a Definite Purpose Magnetic Contactor, an industrial electrical device intended for use in controlling power flow in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This device is typically utilized by industry professionals to aid in the management and automation of machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Auxiliary Contact Module Capacity: 0 – There are no additional secondary circuits controlled by this contactor.
- Coil Voltage: 120V AC – The specified voltage range at which the coil within this contactor operates.
- Frequency: 50/60 Hz – The frequency rate at which this contactor is rated to operate.
- Full Load Amps-Inductive: 40 A & Full Load Amps-Resistive: 50 A – These values represent the rated continuous current handling capacity of this contactor when operating with inductive (like motors) and resistive loads (like heating elements), respectively.
- Horsepower @ Single Phase - 120V AC & Horsepower @ Single Phase - 240V AC : This indicates the rated power handling capability of this contactor when operating under single-phase alternating current at both specified voltages
- Input Control Type: 2-Wire – This method uses two wires for power supply and control of the definite purpose contactor
- Terminal Connection Type: Quick Connect– This feature facilitates connection between these definite purpose contractors and an electrical circuit.
- Standards: CSA, RoHS, UL Listed – These certifications are indicative of compliance with safety, quality, and performance standards set forth by recognized regulatory bodies
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.63
- Package Height: 2.30
- Package Weight: 0.50
