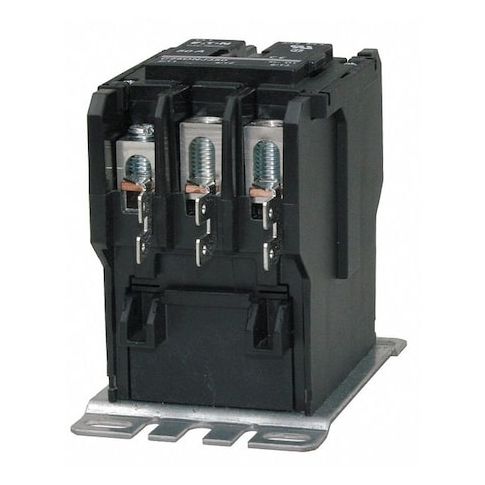

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect MPN:C25FNF360A
Free Shipping
In Stock
The Eaton C25FNF360A Definite Purpose Magnetic Contactor is a reliable and efficient industrial electrical device designed for heavy-duty applications. It controls the flow of power in machinery operations, automating processes in various sectors such as HVAC, data processing, and manufacturing. With a non-reversing action and auxiliary contact module capacity of 4, it offers flexibility in managing multiple electrical loads or signals. Its high rated current handling capacity and motor power control make it suitable for a wide range of applications, including controlling large motors and heating loads. It's an ideal choice for industries requiring precise power management.
Top product features:
- Non-Reversing Action
- Allows control of up to four additional secondary circuits through an auxiliary contact module
- Operates within a frequency range of 50/60 Hz
Top product applications:
- HVAC
- data processing
- manufacturing
The EATON - C25FNF360A is a Definite Purpose Magnetic Contactor, an industrial electrical device that controls the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Auxiliary Contact Module Capacity: 4 – Allows control of up to four additional secondary circuits for flexibility in managing multiple electrical loads or signals.
- Coil Voltage: 120V AC – Specifies the voltage range required for effective engagement or disengagement of its electrical circuit.
- Depth: 3.75 inches – Indicates how far it extends into the mounting surface or enclosure.
- Frequency: Rated for operation within the specified frequency range of 50/60 Hz, which may affect compatibility with different power systems.
- Full Load Amps-Inductive & Resistive: 60 A & 75 A respectively– Specifies the rated continuous current handling capacity for inductive (like motors) and resistive (heating) loads. Exceeding these ratings may result in overheating or damage
- Horsepower @ Single Phase - 120V AC & @ Three Phase -480V AC :5 hp & 40 hp respectively– Specifies the rated motor power control for single-phase and three-phase alternating currents. Operating beyond these specifications could lead to performance issues or damage
Additional Information
- Country of Origin: DO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 4.00
- Package Height: 3.75
- Package Weight: 2.50
