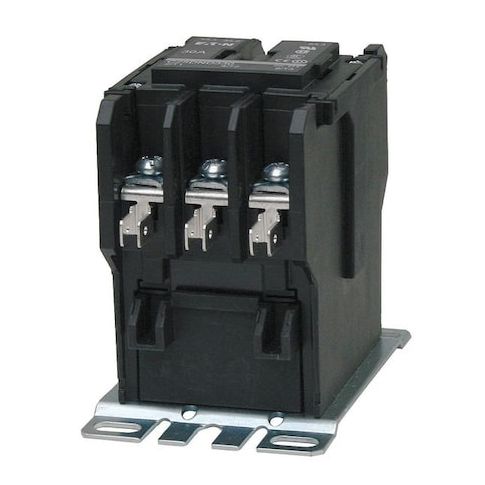

Definite Purpose Magnetic Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect MPN:C25DND330B
Free Shipping
In Stock
The Eaton C25DND330B is a reliable and efficient Definite Purpose Magnetic Contactor designed for heavy-duty applications in various industries. It controls power flow in response to electrical impulses, allowing or interrupting power supply as needed. Ideal for managing and automating machinery operations in HVAC, data processing, and manufacturing sectors, this contactor offers benefits such as improved productivity and reduced downtime. Its non-reversing mode and 3-phase operation make it suitable for applications requiring precise control and high power handling. With a compact design and easy installation, the Eaton C25DND330B is a valuable asset for industrial operations.
Top product features:
- Non-Reversing operation ensures consistent current flow direction
- Operates at a frequency of 50/60 Hz, suitable for various industrial applications
- Controls up to 4 additional circuits through its auxiliary contact module
Top product applications:
- HVAC management and automation
- Data processing and machinery operations
- Manufacturing and industrial automation
The EATON - C25DND330B is a Definite Purpose Magnetic Contactor, an industrial electrical device that controls the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on need. This tool is commonly used for managing and automating machinery operations across various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions in a non-reversing mode where the current flow direction remains constant.
- Auxiliary Contact Module Capacity: 4 – This refers to the number of additional circuits that can be controlled by this contactor.
- Coil Voltage: 208V-240V AC – The specified voltage range within which the product is rated to operate.
- Frequency: 50/60 Hz – The frequency specification indicates the number of electrical cycles per second within which this contactor operates.
- Full Load Amps-Inductive & Resistive: 30 A & 40 A respectively– These are the manufacturer-specified maximum currents for continuous operation under different load types
- Horsepower @ Single Phase - 120V AC & @ Three Phase - 480V AC 2 hp & 15 hp respectively– These are indicative of the motor control capacities at specified voltages and phases as provided by the manufacturer
- Mounting Position: Horizontal, Vertical – Can be installed in either a horizontal or vertical position, as per the product's specifications
- Number of Poles:3– Number of circuits that can be switched simultaneously by this contactor
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 4.00
- Package Height: 3.75
- Package Weight: 1.20
