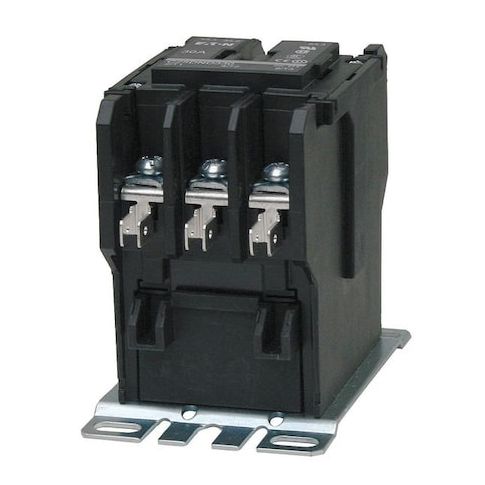

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect MPN:C25DND330A
Free Shipping
In Stock
The Eaton C25DND330A Definite Purpose Magnetic Contactor is a reliable and efficient tool for managing power flow in heavy-duty industrial applications. Suitable for HVAC, data processing, and manufacturing sectors, this contactor operates in a non-reversing mode, ensuring constant current flow direction. With the ability to control up to 4 additional secondary circuits, it offers flexibility in managing multiple electrical loads or signals. Its 120V AC coil voltage rating and 50/60 Hz frequency make it suitable for various power systems, while its 30A inductive and 40A resistive load handling capacity ensure safe and reliable operation.
Top product features:
- Non-reversing mode allows the current flow direction to remain constant.
- Controls up to 4 additional secondary circuits for managing multiple electrical loads or signals.
- Handles continuous loads of up to 30 A for inductive loads and up to 40 A for resistive or heating loads.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The EATON - C25DND330A is a Definite Purpose Magnetic Contactor, an industrial electrical device used to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly utilized for managing and automating machinery operations across various sectors such as HVAC, data processing, and manufacturing.
- Action: The contactor functions in a non-reversing mode where the current flow direction remains constant.
- Auxiliary Contact Module Capacity: The contactor can control up to 4 additional secondary circuits providing flexibility in managing multiple electrical loads or signals.
- Coil Voltage: Rated for operation within a coil voltage range of 120V AC, used to control power flow in industrial and commercial applications.
- Frequency: Specified for use with 50/60 Hz frequency, suitable for various power systems.
- Full Load Amps-Inductive & Resistive: Rated for continuous handling of up to 30 A when controlling inductive loads such as motors or transformers, and up to 40 A when used with resistive or heating loads. Overheating or damage may occur if these ratings are exceeded.
- Horsepower Control Range: Has the capacity to control horsepower levels within specified ranges depending on phase and voltage
- from minimums of 2 hp at single-phase -120V AC, up to maximums of 15 hp at three-phase -600V AC
- Input Control Type: Activated via a two-wire system for both power supply and control
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 4.00
- Package Height: 3.75
- Package Weight: 1.20
