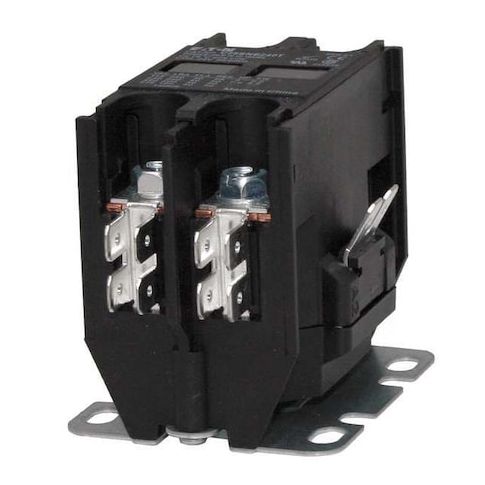

Definite Purpose Magnetic Contactor, 208V-240V AC, 2 P, Non-Reversing, 1 Phase, Quick Connect MPN:C25BNB230B

The EATON - C25BNB230B is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing – The contactor functions with a constant current flow direction.
• Auxiliary Contact Module Capacity: 0 – There are no additional secondary circuits controlled by this contactor.
• Coil Voltage: 208V-240V AC – The specific voltage range required for effective operation of the coil within this contactor.
• Depth: 2.32 in – Indicates how far it extends into its mounting surface or enclosure.
• Enclosure Type: Open – No protective casing around the contactor against environmental factors such as dust and moisture.
• Frequency: 50/60 Hz – Number of electrical cycles per second that this contactor can handle effectively.
• Full Load Amps-Inductive & Resistive: 30 A & 40 A respectively– Rated for continuous operation at specified currents for different types of loads, within the product's specifications
• Horsepower @ Single Phase -120V & 240V AC 2 hp & 5 hp respectively– Specified maximum power output that this contactor is rated to control under specific conditions and voltage ranges
