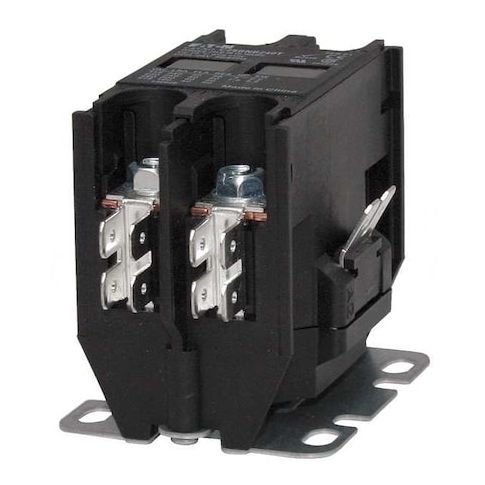

Definite Purpose Magnetic Contactor, 24V AC, 2 P, Non-Reversing, 1 Phase, Quick Connect MPN:C25BNB220T

The EATON - C25BNB220T is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing – The contactor functions with a constant current flow direction.
• Auxiliary Contact Module Capacity: 0 – No additional secondary circuits can be controlled by this contactor.
• Coil Voltage: 24V AC – Specific voltage range required for effective engagement or disengagement of its electrical circuit.
• Depth: 2.32 in – Indicates how far it extends into the mounting surface or enclosure.
• Frequency: 50/60 Hz – Rated for operation within the specified frequency ranges
• Full Load Amps-Inductive & Resistive: Rated for a maximum continuous current of 20 A inductive and 30 A resistive
• Horsepower @ Single Phase -120V &240V AC :Rated for controlling a maximum power output of 1½ hp at 120V AC and 3hp at 240V AC in a single-phase alternating current system
