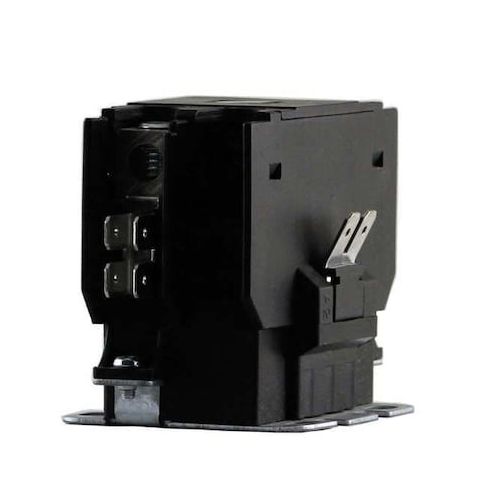

Definite Purpose Magnetic Contactor, 120V AC, 1 P, Non-Reversing, 1 Phase, Quick Connect MPN:C25ANB125A
Free Shipping
In Stock
The Eaton C25ANB125A Definite Purpose Magnetic Contactor is a reliable and efficient industrial electrical device designed to control power flow in heavy-duty applications. Ideal for industry professionals, this contactor automates machinery operations in various sectors such as HVAC, data processing, and manufacturing. Its non-reversing action ensures constant current flow direction, while its 120V AC coil voltage and 25A/30A full load amps rating make it suitable for a wide range of applications. With a compact design and quick connect feature, this contactor is perfect for managing and controlling power in demanding environments.
Top product features:
- The product is a non-reversing magnetic contactor that functions with a constant current flow direction.
- It operates by responding to electrical impulses, allowing or interrupting power supply based on the need.
- It is rated for a maximum continuous current under specified inductive and resistive conditions.
Top product applications:
- HVAC
- data processing
- manufacturing
The EATON - C25ANB125A is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Auxiliary Contact Module Capacity: 0 – The contactor does not support additional secondary circuits.
- Coil Voltage: 120V AC – Indicates the voltage range within which it is designed to operate.
- Depth: 2.32 in – Indicates how far it extends into its mounting surface or enclosure.
- Frequency: 50/60 Hz – Indicates its operational frequency range.
- Full Load Amps-Inductive & Resistive: 25 A & 30 A respectively– Rated for a maximum continuous current under specified conditions
- Horsepower @ Single Phase - 120V AC & Horsepower @ Single Phase -240V AC :2 hp &3 hp respectively– Rated to control a specific horsepower in a single-phase alternating current electrical system at indicated voltages
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.63
- Package Height: 2.30
- Package Weight: 0.45
