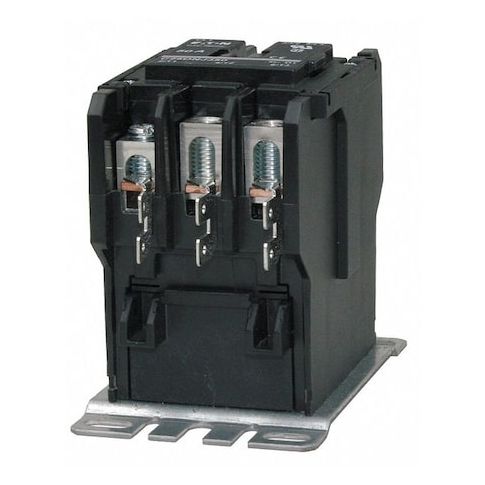

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect MPN:C25FNF375A
Free Shipping
In Stock
The Eaton C25FNF375A Definite Purpose Magnetic Contactor is a robust industrial electrical device designed for heavy-duty applications. It controls power flow by responding to electrical impulses, allowing or interrupting power supply as needed. Commonly used in HVAC, data processing, and manufacturing sectors, this tool manages and automates machinery operations. Its non-reversing action ensures constant current flow direction, while its auxiliary contact module capacity provides flexibility in managing multiple electrical loads. Suitable for 3-phase applications, it operates within a 50/60 Hz frequency range and is rated for up to 50 hp motor power capacity.
Top product features:
- Non-Reversing action allows for constant current flow direction
- Provides auxiliary contact module capacity for managing multiple electrical loads or signals
- Operates at 120V AC coil voltage for effective power control
Top product applications:
- HVAC
- data processing
- manufacturing
The EATON - C25FNF375A is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Auxiliary Contact Module Capacity: 4 – Provides flexibility in managing multiple electrical loads or signals.
- Coil Voltage: 120V AC – Specifies the voltage range required for effective operation.
- Depth: 3.75 in – Indicates how far it extends into the mounting surface or enclosure.
- Frequency: 50/60 Hz – Rated for operation within this specified frequency range.
- Full Load Amps-Inductive: 75 A & Full Load Amps-Resistive: 90 A – Rated for a maximum continuous current under specific load conditions when controlling different types of loads.
- Horsepower @ Three Phase - Various Voltages (208V AC up to 600V AC): Ranges from not rated up to maximum motor power capacity of 50 hp depending on voltage level which specifies the voltage ranges compatible with this device's operational capacity
- Input Control Type: 2-Wire system uses two wires for power supply and control
Additional Information
- Country of Origin: DO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 4.00
- Package Height: 3.75
- Package Weight: 2.50
