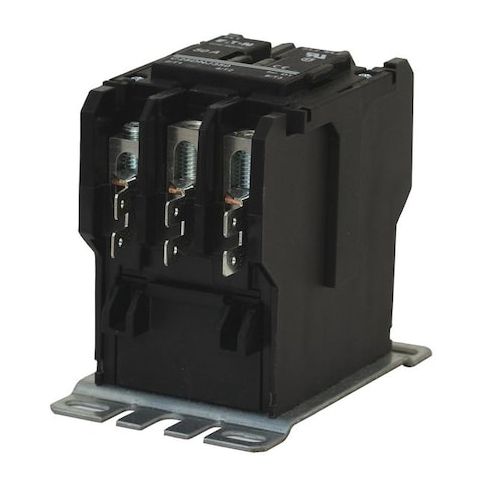

Definite Purpose Magnetic Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase MPN:C25DNJ350B
Free Shipping
In Stock
The Eaton C25DNJ350B Definite Purpose Magnetic Contactor is a heavy-duty electrical device designed to control power flow in industrial applications such as HVAC, data processing, and manufacturing. Its non-reversing action ensures consistent current flow direction, while its auxiliary contact module capacity of four allows for flexible control of multiple electrical loads or signals. With a coil voltage of 208V-240V AC and a frequency of 50/60 Hz, this contactor is suitable for a range of power systems and can handle up to 50A inductive and 65A resistive loads, making it ideal for controlling motors up to 30 hp.
Top product features:
- Operates by responding to electrical impulses, allowing or interrupting power supply based on the need.
- Can control up to four additional secondary circuits, providing flexibility in managing multiple electrical loads or signals.
- Has a non-reversing action, ensuring that the current flow direction remains constant.
Top product applications:
- HVAC systems management
- Data processing machinery automation
- Manufacturing machinery control
The EATON - C25DNJ350B is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – this means that the current flow direction remains constant.
- Auxiliary Contact Module Capacity: 4 – it can control up to four additional secondary circuits providing flexibility in managing multiple electrical loads or signals.
- Coil Voltage: 208V-240V AC – this is the specific voltage range required for effective engagement or disengagement of its electrical circuit.
- Frequency: 50/60 Hz – its specifications include handling a certain number of electrical cycles per second, which may affect its compatibility with various power systems.
- Full Load Amps-Inductive: 50 A & Full Load Amps-Resistive: 65 A – these represent the rated current capacities for continuous control of inductive and resistive loads respectively. Exceeding these values could potentially lead to overheating or damage.
- Horsepower @ Three Phase - 480V AC & Horsepower @ Three Phase - 600V AC : Both indicate the product's rated capacity for controlling motors up to 30 hp under specific three-phase electricity supply conditions. Actual performance may vary based on individual usage circumstances
- Input Control Type: 2-Wire system uses two wires for power supply and control
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 4.00
- Package Height: 3.75
- Package Weight: 1.30
