Definite Purpose Magnetic Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect MPN:C25DND325B
Free Shipping
In Stock

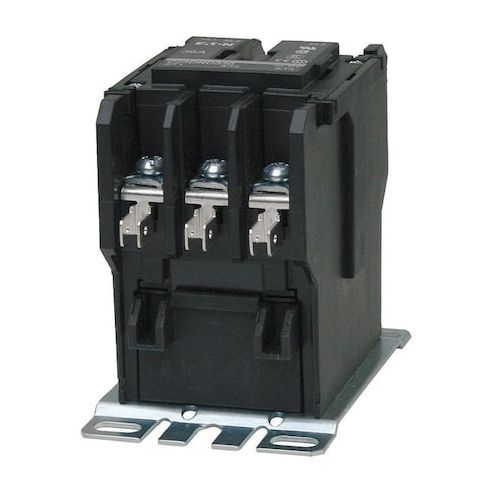

The Eaton C25DND325B Definite Purpose Magnetic Contactor is a reliable and efficient industrial electrical device designed for heavy-duty applications. It controls the flow of power in machinery operations, automating processes in various sectors such as HVAC, data processing, and manufacturing. With a non-reversing action and 3-phase operation, this contactor provides flexibility in managing multiple electrical loads or signals. Its 208V-240V AC voltage range and 25A full load amps make it suitable for controlling motors up to 5 HP at 480V AC and 3.7 HP at 600V AC. Its compact design and quick connect feature make it an ideal choice for industrial professionals.
Top product features:
- Non-Reversing Action: The contactor functions with a constant current flow direction.
- Auxiliary Contact Module Capacity: 4 Provides flexibility in managing multiple electrical loads or signals.
- Full Load Amps-Inductive: 25 A & Full Load Amps-Resistive: 35 A Rated for a maximum continuous current under specified load conditions.
Top product applications:
- HVAC
- data processing
- manufacturing
The EATON - C25DND325B is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Auxiliary Contact Module Capacity: 4 – Provides flexibility in managing multiple electrical loads or signals.
- Coil Voltage: 208V-240V AC – Specifies the voltage range required for effective operation.
- Depth: 3.75 in – Indicates how far it extends into the mounting surface or enclosure.
- Frequency: 50/60 Hz – Rated for operation within the specified frequency range.
- Full Load Amps-Inductive: 25 A & Full Load Amps-Resistive: 35 A – Rated for a maximum continuous current under specified load conditions.
- Horsepower @ Three Phase - 480V AC & Horsepower @ Three Phase - 600V AC : Compatible with controlling motors up to the specified power ratings at respective voltages
- Number of Poles: 3 – Number of circuits that can be switched simultaneously providing versatile control options
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 4.00
- Package Height: 3.75
- Package Weight: 1.20
