Definite Purpose Magnetic Contactor, 24V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect MPN:C25DND325T
Free Shipping
In Stock

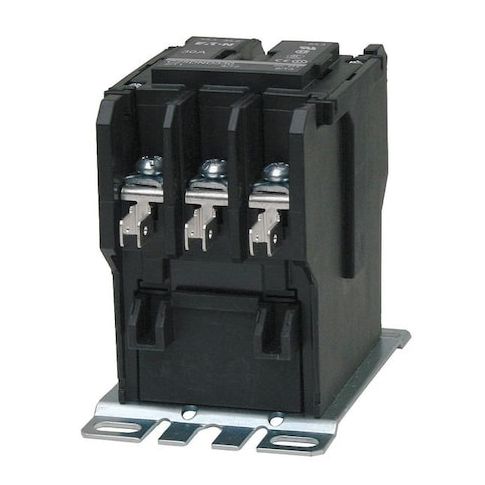

The Eaton C25DND325T Definite Purpose Magnetic Contactor is a reliable industrial electrical device designed to control power flow in heavy-duty applications. Suitable for managing machinery operations in various sectors, including HVAC, data processing, and manufacturing, this contactor ensures efficient and safe power supply. Its non-reversing action and 24V AC coil voltage make it a versatile choice for automating processes. With a capacity for 4 auxiliary contacts, it provides flexibility in managing multiple electrical loads or signals. Its compact design and quick connect feature make it easy to integrate into existing systems, increasing productivity and reducing downtime.
Top product features:
- The product has a Non-Reversing action, allowing for constant current flow direction.
- It has an Auxiliary Contact Module Capacity of 4, providing flexibility in managing multiple electrical loads or signals.
- The product operates at a Coil Voltage of 24V AC, specifying the voltage range required for effective operation.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The EATON - C25DND325T is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Auxiliary Contact Module Capacity: 4 – Provides flexibility in managing multiple electrical loads or signals.
- Coil Voltage: 24V AC – Specifies the voltage range required for effective operation.
- Depth: 3.75 in – Indicates how far it extends into the mounting surface or enclosure.
- Frequency: 50/60 Hz – Rated for operation within this specified frequency range.
- Full Load Amps-Inductive: 25 A & Full Load Amps-Resistive: 35 A– Rated for a maximum continuous current within these specified ranges under normal operating conditions
- Horsepower @ Single Phase - 120V AC: 2 hp & Horsepower @ Three Phase -600V AC :15 hp– Specifies the horsepower ratings at given phase and voltage settings under normal operating conditions
- Input Control Type: 2-Wire system– Uses two wires for power supply and control
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 4.00
- Package Height: 3.75
- Package Weight: 1.25
