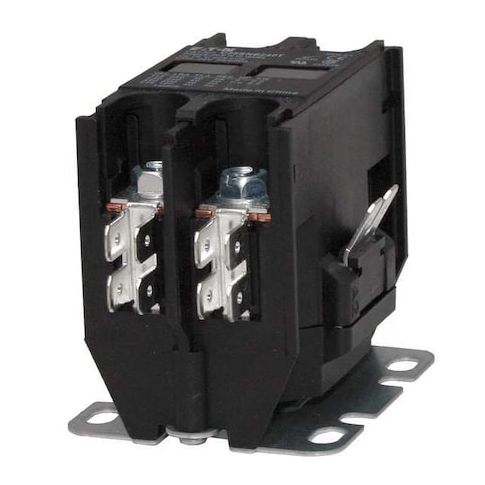

Definite Purpose Magnetic Contactor, 24V AC, 2 P, Non-Reversing, 1 Phase, Quick Connect MPN:C25BNB240T
Free Shipping
In Stock
The Eaton C25BNB240T is a reliable and efficient Definite Purpose Magnetic Contactor designed for heavy-duty applications in various industries such as HVAC, data processing, and manufacturing. This non-reversing contactor ensures a constant current flow direction, making it ideal for controlling machinery operations. With a 24V AC coil voltage and a 40A/50A full load capacity, it can handle demanding loads while providing a long lifespan. Its compact size and quick connect design make it easy to integrate into existing systems, reducing downtime and increasing productivity. Suitable for single-phase applications, it's an essential tool for industry professionals looking to automate and manage their operations.
Top product features:
- Non-Reversing operation allows for constant current flow direction
- Auxiliary Contact Module Capacity is 0, limiting secondary circuit control
- Coil Voltage is 24V AC, enabling effective engagement or disengagement of electrical circuits
Top product applications:
- HVAC
- Data processing
- Manufacturing
The EATON - C25BNB240T is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Auxiliary Contact Module Capacity: 0 – No additional secondary circuits can be controlled by this contactor.
- Coil Voltage: 24V AC – Specific voltage range required for effective engagement or disengagement of its electrical circuit.
- Depth: 2.32 in – Indicates how far it extends into the mounting surface or enclosure.
- Frequency: 50/60 Hz – Number of electrical cycles per second that it's rated for operation within.
- Full Load Amps-Inductive & Resistive: 40 A & 50 A respectively– Rated continuous current capacity under specified load conditions when controlling different types of loads.
- Horsepower @ Single Phase -120V & 240V AC :3 hp & 7-1/2 hp respectively– Rated for managing power output at specified single-phase voltages
- Input Control Type: 2-Wire system uses two wires for power supply and control
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.63
- Package Height: 2.30
- Package Weight: 0.50
