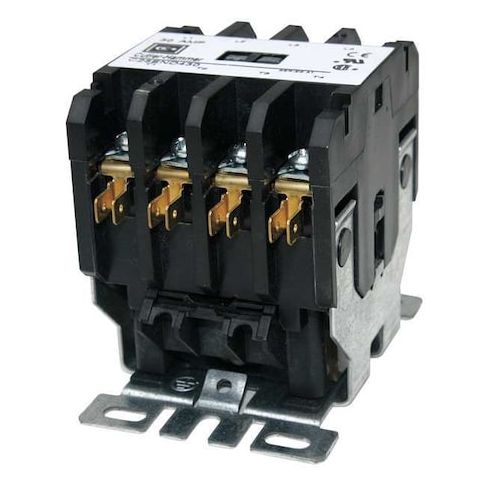

Definite Purpose Magnetic Contactor, 120V AC, 4 P, Non-Reversing, 3 Phase, Quick Connect MPN:C25END430A
Free Shipping
In Stock
This Definite Purpose Magnetic Contactor is designed for heavy-duty applications, controlling power flow in industrial settings. Industry professionals use it to manage and automate machinery operations in various sectors, including HVAC, data processing, and manufacturing. Its non-reversing mode ensures consistent current flow direction, while its auxiliary contact module can control up to 4 additional circuits, providing flexibility in managing multiple electrical loads or signals. Suitable for a range of motor sizes, this contactor is ideal for applications requiring high power and reliability, making it a valuable tool for maintaining efficient and safe industrial operations.
Top product features:
- Non-Reversing mode keeps current flow direction constant.
- Can control up to 4 additional secondary circuits providing flexibility in managing multiple electrical loads or signals.
- Rated for continuous operation at up to 30 A for inductive loads and up to 40 A for resistive loads.
Top product applications:
- HVAC
- Data processing
- Manufacturing
The EATON - C25END430A is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing mode keeps current flow direction constant.
- Auxiliary Contact Module Capacity: Can control up to 4 additional secondary circuits providing flexibility in managing multiple electrical loads or signals.
- Coil Voltage: Requires 120V AC for effective engagement or disengagement of its electrical circuit.
- Depth: Extends 3.75 inches into mounting surface or enclosure.
- Frequency: Rated for operation within the specified frequency range of 50/60 Hz.
- Full Load Amps-Inductive & Resistive: Rated for continuous operation at up to 30 A for inductive loads and up to 40 A for resistive loads. Exceeding these limits may result in overheating or damage
- Horsepower @ Single Phase & Three Phase : Compatible with a range of motor sizes, from those requiring as little as a single-phase, two-horsepower supply, up to those needing a three-phase, fifteen-horsepower supply. Compatibility outside this range is not guaranteed
- Input Control Type: Uses a two-wire system for activation and control
Additional Information
- Country of Origin: DO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.69
- Package Height: 4.74
- Package Weight: 2.05
