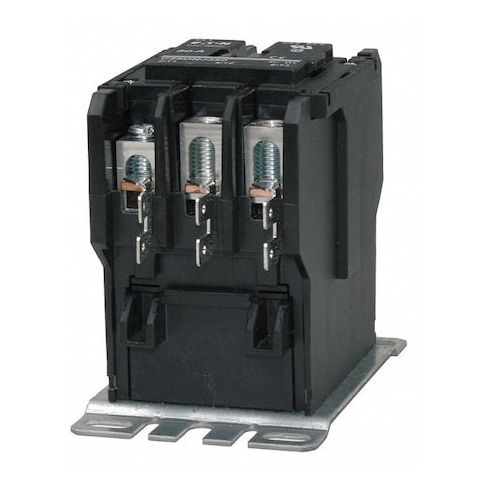

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect MPN:C25GNF390A
Free Shipping
In Stock
The Eaton C25GNF390A Definite Purpose Magnetic Contactor is a reliable and efficient tool for managing power flow in heavy-duty applications. Suitable for use in HVAC, data processing, and manufacturing sectors, this contactor responds to electrical impulses to allow or interrupt power supply. Its non-reversing action and 4-way auxiliary contact module capacity make it ideal for handling multiple electrical loads or signals. With a maximum current handling capacity of 90A inductive and 120A resistive, it can control different levels of electrical loads in industrial settings. Its compact design and quick connect feature make it a valuable addition to any industrial electrical setup.
Top product features:
- Non-Reversing action allows for constant current flow direction
- Auxiliary Contact Module Capacity of 4 enables handling of multiple electrical loads or signals
- Maximum Operating Temperature range of 158°F to -13°F ensures reliable operation in a wide range of environments
Top product applications:
- Managing and automating machinery operations in HVAC sectors
- Managing and automating machinery operations in data processing
- Managing and automating machinery operations in manufacturing
The EATON - C25GNF390A is a Definite Purpose Magnetic Contactor, an industrial electrical device intended for use in managing power flow in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Auxiliary Contact Module Capacity: 4 – Can be used for handling multiple electrical loads or signals.
- Coil Voltage: 120V AC – Indicates the voltage range within which it is designed to operate.
- Frequency: 50/60 Hz – Indicates compatibility with different power systems.
- Full Load Amps-Inductive: 90 A & Full Load Amps-Resistive: 120 A – Defines maximum current handling capacity without overheating or causing damage.
- Horsepower @ Single Phase - 240V AC: 15 hp & Horsepower @ Three Phase - 480V AC: 50 hp– Indicates its intended use for controlling different levels of electrical loads in industrial settings
- Input Control Type: 2-Wire – Uses two wires for power supply and control
- Maximum Operating Temperature:158 Degrees F & Minimum Operating Temperature:-13 Degrees F– Specifies the operating temperature range within which it is designed to function
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 4.80
- Package Height: 4.30
- Package Weight: 3.60
