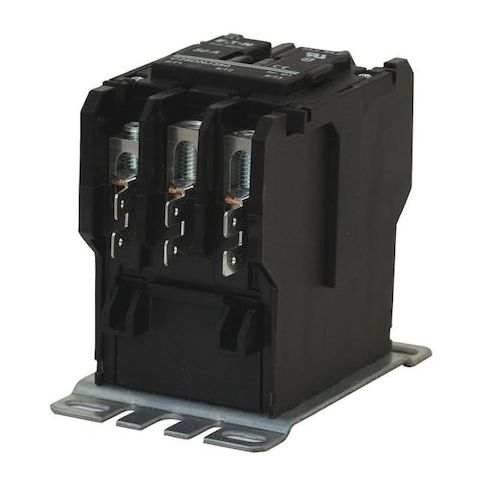

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect MPN:C25DNJ350A

The EATON - C25DNJ350A is a Definite Purpose Magnetic Contactor, an industrial electrical device intended for use in controlling the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on need. It's commonly used for managing and automating machinery operations across various sectors such as HVAC, data processing, and manufacturing.

• Action: Non-Reversing – The contactor is designed to operate with a consistent current flow direction.
• Auxiliary Contact Module Capacity: 4 – Enables interaction with additional secondary circuits, potentially aiding in handling multiple electrical loads or signals.
• Coil Voltage: 120V AC – Indicates the voltage range within which it can engage or disengage its electrical circuit.
• Depth: 3.75 in – Indicates how far it extends into the mounting surface or enclosure.
• Frequency: 50/60 Hz – Indicates its potential operation within different power systems based on number of electrical cycles per second handled.
• Full Load Amps-Inductive: 50 A & Full Load Amps-Resistive: 65 A– Signify the maximum current it is rated to handle continuously when interacting with inductive and resistive loads, under normal operating conditions.
• Horsepower @ Three Phase - 480V AC & Horsepower @ Three Phase - 600V AC :30 hp each– Display intended motor power capacity at three-phase supplies of respective voltages
• Input Control Type: 2-Wire system uses two wires for power supply and control
