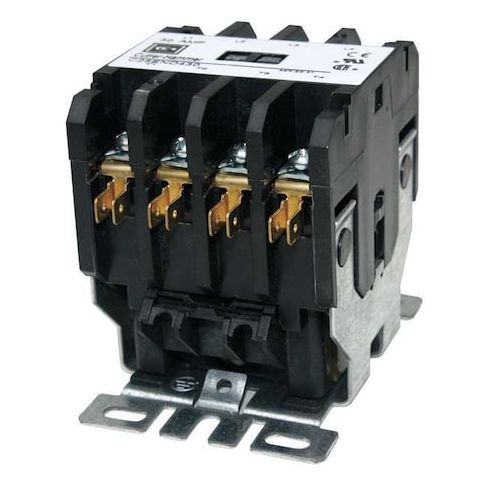

Definite Purpose Magnetic Contactor, 120V AC, 4 P, Non-Reversing, 3 Phase, Quick Connect MPN:C25END425A
Free Shipping
In Stock
The Eaton C25END425A is a reliable and efficient Definite Purpose Magnetic Contactor designed for heavy-duty applications. Its non-reversing action and 4 auxiliary contact modules provide flexibility in managing multiple electrical loads or signals. Suitable for use in HVAC, data processing, and manufacturing, this contactor operates at 120V AC and is rated for 25A inductive and 30A resistive loads. With a compact design and simple two-wire system, it's easy to integrate into existing systems. Its robust construction ensures reliable operation and long lifespan, making it an ideal choice for applications requiring precise control and high performance.
Top product features:
- Non-Reversing action, which allows for a constant current flow direction
- Provides flexibility in managing multiple electrical loads or signals with an auxiliary contact module capacity of 4
- Operates via a simple two-wire system for both power supply and control
Top product applications:
- HVAC
- Data processing
- Manufacturing
The EATON - C25END425A is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Auxiliary Contact Module Capacity: 4 – Provides flexibility in managing multiple electrical loads or signals.
- Coil Voltage: 120V AC – Specifies the voltage range required for effective operation.
- Depth: 3.75 inches – Indicates how far it extends into the mounting surface or enclosure.
- Frequency: 50/60 Hz – Determines its compatibility with different power systems.
- Full Load Amps-Inductive & Resistive: Rated for a maximum of 25 A (inductive) and 30 A (resistive).
- Horsepower @ Single Phase & Three Phase - Rated for operation with motors ranging from a maximum horsepower of 2 hp at single phase power supply of 120 volts, up to a maximum horsepower of 15 hp at three-phase power supply of 575 volts
- Input Control Type: Operates via a simple two-wire system for both power supply and control
Additional Information
- Country of Origin: DO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.69
- Package Height: 4.74
- Package Weight: 2.05
