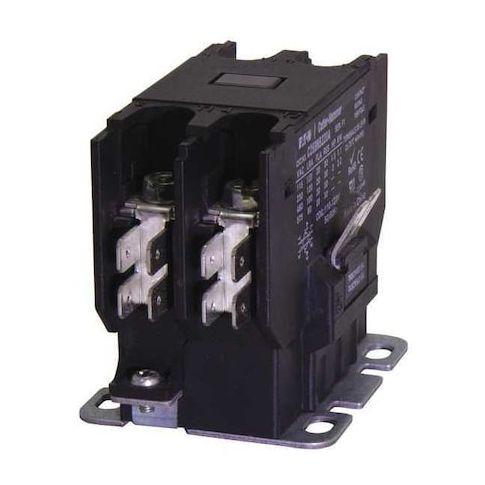

Definite Purpose Magnetic Contactor, 24V AC, 1 P, Non-Reversing, 1 Phase, Quick Connect MPN:C25CNB130T

The EATON - C25CNB130T is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing – The contactor functions with a constant current flow direction.
• Auxiliary Contact Module Capacity: 1 – Allows control of one additional secondary circuit for flexibility in managing multiple electrical loads or signals.
• Coil Voltage: 24V AC – Specifies the voltage range required for effective engagement or disengagement of its electrical circuit.
• Depth: 2.32 in – Indicates how far it extends into the mounting surface or enclosure.
• Frequency: 50/60 Hz – Rated for operation within this specified frequency range which may affect compatibility with various power systems.
• Full Load Amps-Inductive & Resistive: 30 A & 40 A respectively– The rated maximum continuous current for controlling different types of loads. Exceeding these ratings may lead to overheating or potential damage
• Horsepower @ Single Phase -120V &2 40V AC 2 hp & 5 hp respectively– The rated maximum power output under specific conditions and voltages in a single-phase alternating current system
