Definite Purpose Magnetic Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect MPN:C25FNF360B
Free Shipping
In Stock

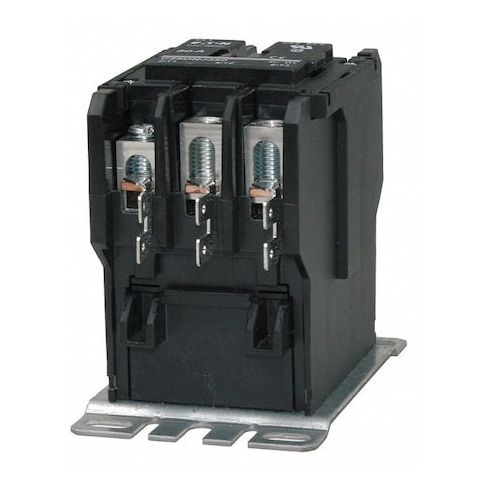

The Eaton C25FNF360B Definite Purpose Magnetic Contactor is a heavy-duty electrical device designed to control power flow in demanding applications. Ideal for HVAC, data processing, and manufacturing sectors, this device responds to electrical impulses to manage and automate machinery operations. With a non-reversing action and 4 auxiliary contact modules, it offers flexibility in managing multiple electrical loads or signals. Compatible with three-phase supplies up to 60 horsepower, this contactor operates within a 208V-240V AC voltage range and withstands temperatures up to 158°F. Its reliability and efficiency make it a valuable asset for industrial operations requiring precise control and automation.
Top product features:
- Non-Reversing operation allows for constant current flow direction.
- Auxiliary Contact Module Capacity of 4 enables flexibility in managing multiple electrical loads or signals.
- Rated for operation at temperatures reaching as high as 158 Degrees F, making it suitable for harsh environments.
Top product applications:
- HVAC operations
- Data processing
- Manufacturing
The EATON - C25FNF360B is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Auxiliary Contact Module Capacity: 4 – Allows flexibility in managing multiple electrical loads or signals.
- Coil Voltage: 208V-240V AC – Specifies the voltage range required for effective operation.
- Frequency: Rated for a frequency range of 50/60 Hz.
- Full Load Amps-Inductive: Specifies the full load amps-inductive at 60 A and full load amps-resistive at 75 A, within which the device is rated to operate
- Horsepower @ Three Phase - 480V AC & Horsepower @ Three Phase - 600V AC : Compatible with three-phase supplies with varying motor power capacities, ranging from half horsepower up to an unspecified limit or even up to 60 horsepower based on voltage level
- Input Control Type: Uses a two-wire system for power supply and control
- Maximum Operating Temperature: Rated for operation at temperatures reaching as high as158 Degrees F.
Additional Information
- Country of Origin: DO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 4.00
- Package Height: 3.75
- Package Weight: 2.50
