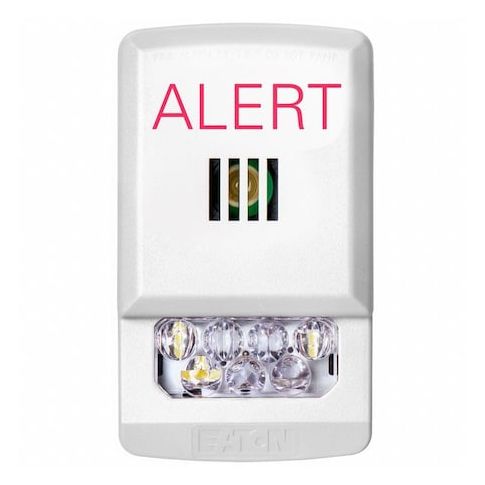

Horn Strobe, Horn, Continuous/Pulse, 24V, 86 dBA, Plastic, White, Wall Mount MPN:ELHSW-AL
Free Shipping
In Stock
The Eaton ELUXA HORN STROBE is a versatile and reliable warning device designed for a variety of applications. Its 24V operation and 86 dBA sound level make it an effective way to alert people of potential hazards or alarms in industrial, commercial, or residential settings. The compact, wall-mountable design allows for easy installation in tight spaces, while the plastic construction provides durability and resistance to the elements. Suitable for use in emergency situations, such as fire alarms or security breaches, this horn strobe is also ideal for applications where a loud, attention-grabbing signal is required.
Top product features:
- It produces a 86 dBA sound level.
- It has a continuous and pulse mode option.
- It is powered by 24V.
Top product applications:
- Industrial Alarm System
- Fire Alarm System
- Security Alarm System
EATON ELHSW-AL is a 24V horn strobe for indoor wall-mount signaling. It combines an audible horn and LED strobe in one white unit with 4 25/32 in overall length, 2 3/4 in overall width, and 4 25/32 in overall depth for fire and CO signaling. It features continuous and pulse sound patterns and selectable brightness settings.
Key Features:
- Audible and visual signaling with horn and strobe in one device
- Sound output: 86 dBA maximum at 10 ft
- Sound patterns: continuous and pulse
- 2 sound patterns
- Light output: selectable 15 cd, 30 cd, 75 cd, 110 cd, 135 cd, or 185 cd
- rated light output 185 cd
- Manufacturer-rated LED strobe life: 100,000 hr
- Power and wiring: 24V, direct wire, 5 W
- Operating current: 0.022 A DC, 0.030 A DC, 0.060 A DC, 0.086 A DC, 0.125 A DC, 0.185 A DC
- Construction: white plastic housing with clear Lexan lens
- Mounting: surface mount and wall mount
- mounting plate included
- Operating temperature: 32°F to 122°F
- Standards: FCC, RoHS, UL Listed, ULC
- Dimensions: 4 25/32 in overall length, 2 3/4 in overall width, 4 25/32 in overall depth
Additional Information
- Country of Origin: RO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.00
- Package Height: 5.00
- Package Weight: 0.50
