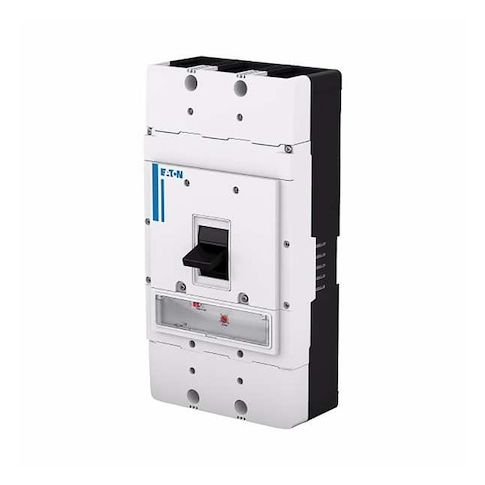

Circuit Breaker, PDG Series, 800A, 3 Pole, 600V AC, 65kA at 480V AC, A Curve MPN:PDG43M0800TFAJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G500901910
Circuit Breaker, PDG Series, 800A, 3 Pole, 600V AC, 65kA at 480V AC, A Curve
Protect your electrical system with the reliable PDG Series Circuit Breaker from Eaton. This 800A, 3-pole breaker is designed for use with Power Defense and features a 65kA arc rating at 480V AC, providing top-notch protection against electrical faults. Its adjustable phase connection and compact frame size make it ideal for a variety of applications, including commercial and industrial settings. With a maximum operating temperature of 158°F, this circuit breaker ensures reliable performance in demanding environments. Use it to safeguard your electrical system and ensure a safe and efficient power distribution network.
Top product features:
- Circuit Breaker has a maximum AIR rating of 65kA at 480V AC, providing protection against high fault currents.
- Circuit Breaker has a three-pole design, allowing for simultaneous control of three-phase power circuits.
- Circuit Breaker is equipped with a thermo-magnetic trip type, enabling instantaneous tripping in case of an emergency.
Top product applications:
- Industrial Control Panels
- High-End Data Centers
- Commercial Electrical Distribution Systems
- Circuit Breaker, 800 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65 kA at 480V AC, For Use With Power Defense, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermo Magnetic, Phase Three, Instantaneous Trip Fixed
- Adjustable, Phase Connection ABC, Frame Size 800A/Frame 4, Height 5.5 in, Width 1 in, Depth 3.58 in, Min. Wire Size 400 AWG, Max. Wire Size 3/0 AWG, Max. Operating Temp. 158 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 11.00
- Package Height: 19.00
- Package Weight: 31.00
Product info last updated on January 28, 2026 8:23pm UTC
Category: Circuit Protection
