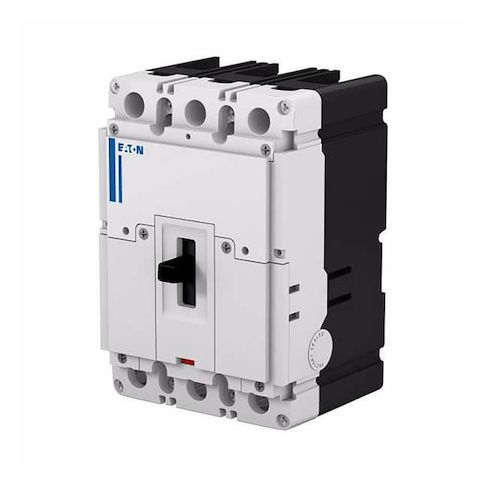

Circuit Breaker, PDG Series, 90A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve MPN:PDG23G0090TFFL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G500901798
Circuit Breaker, PDG Series, 90A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve
Protect your electrical system with the PDG Series 90A 3-Pole Circuit Breaker from Eaton, a reliable and efficient solution for a wide range of applications. Suitable for use in commercial and industrial settings, this circuit breaker provides 35kA of short-circuit interrupting capacity and is rated for 600V AC. Its thermal-magnetic trip type ensures safe and reliable operation, while its compact design makes it easy to install in tight spaces. Ideal for use in panelboards, switchboards, and motor control centers, this circuit breaker is a great choice for applications where high current and reliability are critical.
Top product features:
- Trip Type: Thermal Magnetic
- Max. AIR Rating: 35 kA at 480V AC
- Min. Wire Size: 14 AWG
Top product applications:
- Commercial Electrical Panel
- Industrial Machinery Protection
- Heavy-Duty Power Distribution
Circuit Breaker, 90 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 35 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Terminals Load Only, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 225A/Frame 2, Height 6 in, Width 4.11 in, Depth 3.5 in, Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 4.00
Product info last updated on February 5, 2026 12:55pm UTC
Category: Circuit Protection
