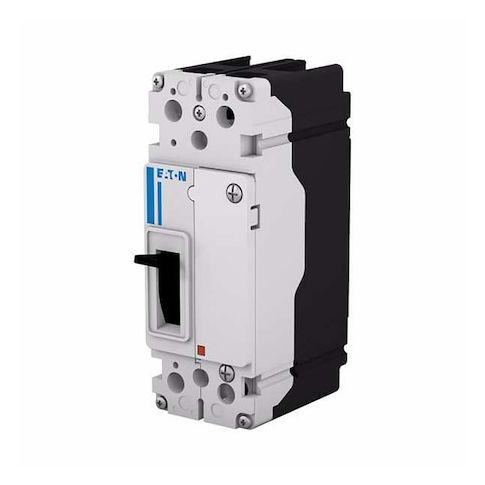

Circuit Breaker, PDG Series, 40A, 2 Pole, 600V AC, 65kA at 480V AC, A Curve MPN:PDG12M0040TFFJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G400901881
Circuit Breaker, PDG Series, 40A, 2 Pole, 600V AC, 65kA at 480V AC, A Curve
Protect your electrical systems with the reliable PDG Series Circuit Breaker from Eaton. This 40A, 2-pole breaker is designed for use in a variety of applications, including commercial and industrial settings. With a 65kA rating at 480V AC, it provides excellent protection against electrical overloads and short circuits. The breaker's thermal magnetic trip type ensures fast and accurate response to potential faults. Its compact size and standard line and load lug connections make it easy to integrate into existing systems. Suitable for use in a range of environments, from outdoor to indoor settings.
Top product features:
- Thermal Magnetic Trip Type
- Instantaneous Trip Fixed for Phase Three
- Two-Pole Circuit Breaker Design
Top product applications:
- Industrial Power Distribution Systems
- Commercial Building Electrical Systems
- High-Density Data Centers
Circuit Breaker, 40 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection AB, Frame Size 125A/Frame 1, Height 5.5 in, Width 2 in, Depth 3.58 in, Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 4.00
- Package Height: 6.00
- Package Weight: 2.00
Product info last updated on March 12, 2026 12:45am UTC
Category: Circuit Protection
