Molded Case Circuit Breaker, PDG Series, 100A, 2 Pole, 600V AC, 65kA at 480V AC, A Curve MPN:PDG12M0100TFFJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G400901867
Molded Case Circuit Breaker, PDG Series, 100A, 2 Pole, 600V AC, 65kA at 480V AC, A Curve

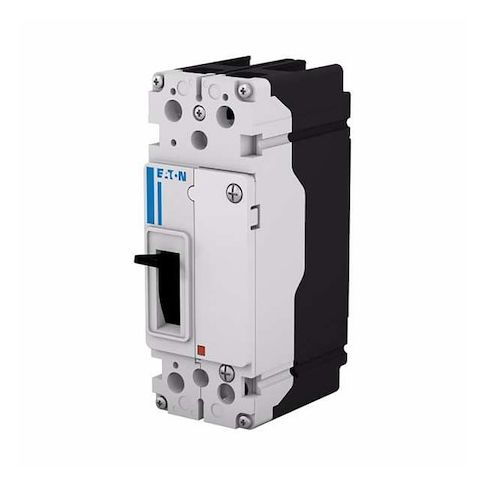

The Eaton PDG Series 100A 2-Pole Molded Case Circuit Breaker is a reliable and efficient solution for a wide range of applications. Designed for use in commercial and industrial settings, this circuit breaker provides protection against overloads and short circuits, ensuring the safe operation of electrical systems. Its thermal magnetic trip type and instantaneous trip fixed feature make it ideal for applications where high current levels are present. Suitable for use in 600V AC systems, this circuit breaker is a versatile and cost-effective option for electrical contractors and facility managers.
Top product features:
- It has a 100A amp rating.
- It has a thermal magnetic trip type.
- It is rated for 65kA at 480V AC.
Top product applications:
- Panelboards
- Industrial Power Distribution Systems
- Commercial Building Wiring
Circuit Breaker, 100 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection AB, Frame Size 125A/Frame 1, Width 2 in, Depth 2.99 in, Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 4.00
- Package Height: 6.00
- Package Weight: 2.00
Product info last updated on February 10, 2026 1:35pm UTC
Category: Circuit Protection
