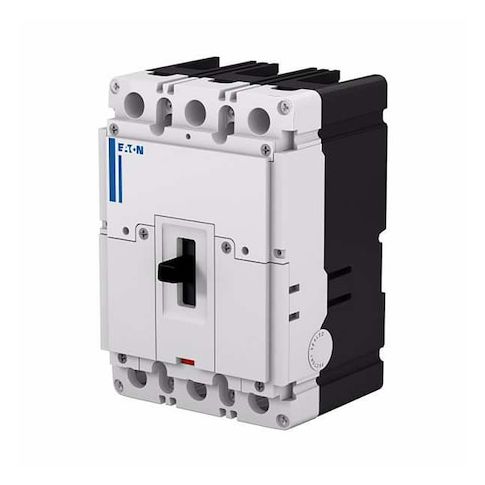

Thermal Magnetic Circuit Breaker, PDG Series, 100A, 3 Pole, 600V AC, 25kA at 480V AC, A Curve MPN:PDG23F0100TFFJ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G400901812
Thermal Magnetic Circuit Breaker, PDG Series, 100A, 3 Pole, 600V AC, 25kA at 480V AC, A Curve
Protect your electrical systems with the Thermal Magnetic Circuit Breaker, PDG Series, 100A, 3 Pole, 600V AC from Eaton. This reliable circuit breaker is designed for use in a variety of applications, including commercial and industrial settings, where it can help prevent electrical fires and equipment damage. Its thermal magnetic trip mechanism provides fast and accurate protection, while its 25kA short-circuit rating ensures it can handle high current surges. With its compact design and easy installation, this circuit breaker is perfect for use in panelboards, motor control centers, and other electrical distribution systems.
Top product features:
- 100A rating for high-current applications
- Thermal magnetic trip mechanism for reliable protection against overcurrent and overheating
- Three-pole design for phase connection and protection of three-phase electrical systems
Top product applications:
- Industrial Control Panels
- Commercial Electrical Distribution Systems
- Heavy-Duty Manufacturing Facilities
Circuit Breaker, 100 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 25 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 225A/Frame 2, Height 6 in, Width 4.11 in, Depth 3.5 in, Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 4.00
Product info last updated on February 8, 2026 4:39pm UTC
Category: Circuit Protection
