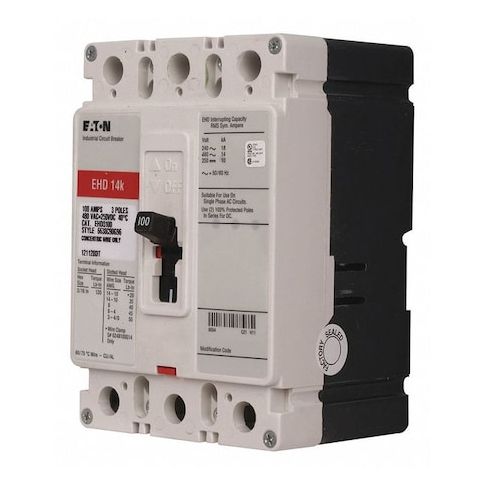

Molded Case Circuit Breaker, EHD Series, 100A, 3 Pole, 480V AC, 18kA at 240V AC MPN:EHD3100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3731546
Molded Case Circuit Breaker, EHD Series, 100A, 3 Pole, 480V AC, 18kA at 240V AC
Eaton's EHD Series Molded Case Circuit Breaker is a high-performance solution for demanding industrial applications. Designed for use with Allen Bradley, Eaton, and Rockwell Automation enclosed controls, switchboards, and Westinghouse systems, this 100A, 3-pole circuit breaker provides reliable protection against overloads and short circuits. With a high amp trip setting of 100A and low amp trip setting of 15A, it ensures safe and efficient operation in a variety of settings. Its thermal magnetic trip type and instantaneous trip fixed feature provide added security, making it an ideal choice for applications where reliability and safety are paramount.
Top product features:
- It provides a high amp trip setting of 100 A for sensitive equipment protection.
- It has a low amp trip setting of 15 A for precise control.
- It features a thermal magnetic trip type for reliable circuit protection.
Top product applications:
- Switchboard
- Enclosed Control
- Rockwell Automation Enclosed Control
Molded Case Circuit Breaker, 100 A Amps, AC Voltage Rating 480V AC, Max. AIR Rating 18kA at 240V AC, For Use With Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse, Series EHD, High Amp Trip Setting 100 A, Low Amp Trip Setting 15 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 250V DC, Terminal Connection Load Side Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC
Additional Information
- Country of Origin: DO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 4.90
- Package Height: 4.90
- Package Weight: 4.00
Product info last updated on February 25, 2026 10:01pm UTC
Category: Circuit Protection
