Miniature Circuit Breaker, GHB Series, 80A, 3 Pole, 277/480V AC, 14kA at 277/480V AC MPN:GHB3080
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3731150

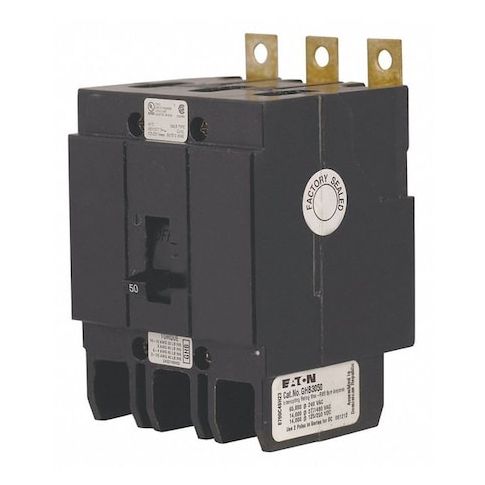

Miniature Circuit Breaker, GHB Series, 80A, 3 Pole, 277/480V AC, 14kA at 277/480V AC
Eaton's GHB Series 80A 3-Pole Miniature Circuit Breaker is designed for use with Eaton Powerline Panelboards, providing reliable and efficient electrical protection in a compact package. Ideal for a variety of applications, including commercial and industrial settings, this circuit breaker offers a high 14kA at 277/480V AC AIR rating, ensuring maximum protection against overloads and short circuits. With its toggle actuator and bolt-on mounting style, installation is quick and easy. The GHB Series circuit breaker is also compatible with Eaton's Series 1A Panelboards, making it a convenient and reliable choice for a range of electrical applications.
Top product features:
- Breaks 80A of current in a 3-pole configuration
- Protects against electrical overloads and short circuits up to 14kA at 277/480V AC
- Mounts securely to a panelboard or load center with a bolt-on design
Top product applications:
- Panelboards
- Load Centers
- Eaton Powerline Panelboards
Miniature Circuit Breaker, Amps 80 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 125/250V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series 1A, Phase Three, Series GHB, Max. AIR Rating 14kA at 277/480V AC, For Use With Eaton Powerline Panelboards, Terminal Connection Screw Clamp, Frame Size 100/GHB, Length 4 in, Width 3 in, Depth 2.63 in, Min. Operating Temp. -4 Degrees F
Additional Information
- Country of Origin: DO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 4.40
- Package Weight: 1.76
Product info last updated on February 8, 2026 3:19am UTC
Category: Circuit Protection
