208VAC Reversing Magnetic Contactor 3P 90A NEMA 3 MPN:CN55KN3E
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3719721

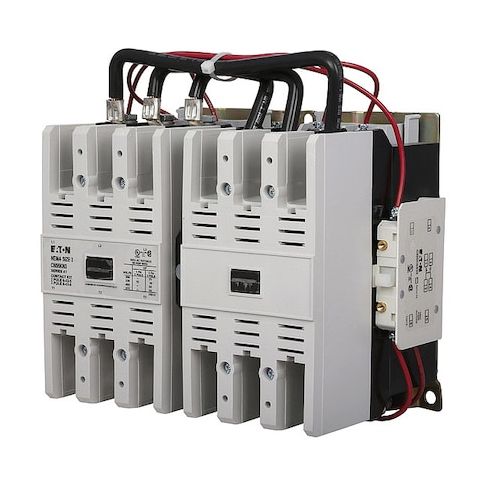

208VAC Reversing Magnetic Contactor 3P 90A NEMA 3
The Eaton 208VAC Reversing Magnetic Contactor is a reliable and efficient solution for a wide range of industrial applications. Designed for use in 3-phase systems, this contactor can handle up to 90A of current and features a reversing capability, making it ideal for applications such as conveyor systems, pumps, and fans. The contactor's compact design and screw terminal connections make it easy to install and maintain, while its NEMA 3 rating ensures it can withstand harsh environments. With a high horsepower rating, this contactor is perfect for applications requiring a high level of power and reliability.
Top product features:
- Reversing capability allows the product to switch direction of operation
- Has a Form 1NO/1NC auxiliary contact configuration
- Supports three-phase operation up to 30 horsepower at 240V AC
Top product applications:
- Motor control for industrial machinery
- Reversing conveyor belt systems
- High-torque industrial equipment control
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size 3, Coil Voltage 208V AC, Number of Poles 3, Full Load Current - Inductive 90 A, Reversing Capability Reversing, Overall Height 9.11 in, Overall Width 7.05 in, Terminal Connection Type Screw Terminals, Frame Size K, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 2, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 30 hp, Horsepower @ Three Phase - 480V AC 50 hp
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.40
- Package Width: 10.60
- Package Height: 8.40
- Package Weight: 18.25
Product info last updated on February 4, 2026 2:11am UTC
Category: Industrial Electrical Controls and Automation
