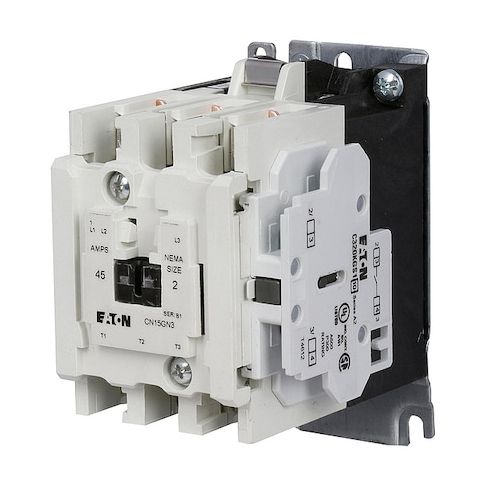

480VAC Non-Reversing Magnetic Contactor 3P 45A NEMA 2
The Eaton 480VAC Non-Reversing Magnetic Contactor is a reliable and efficient solution for controlling high-power electrical loads in industrial settings. Suitable for use in 3-phase systems, this contactor can handle up to 45A of full-load current and supports up to 25 horsepower at 480V AC. Its non-reversing design ensures consistent and predictable performance, making it ideal for applications such as motor control, conveyor systems, and pumps. The compact design and NEMA 2 enclosure rating make it easy to integrate into existing panel configurations, providing a reliable and space-efficient solution for a wide range of industrial applications.
Top product features:
- Operates with a 440/480V AC coil voltage
- Has a 3-pole configuration
- Provides 1 normally open auxiliary contact
Top product applications:
- Industrial control systems for heavy-duty applications
- Motor control systems for high-power motors
- Power distribution systems for large commercial buildings
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 2, Coil Voltage 440/480V AC, Number of Poles 3, Full Load Current - Inductive 45 A, Reversing Capability Non-Reversing, Overall Height 5.05 in, Overall Width 2.56 in, Terminal Connection Type Screw Terminals, Frame Size G, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 15 hp, Horsepower @ Three Phase - 480V AC 25 hp
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 27 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.40
- Package Height: 5.60
- Package Weight: 3.15
