120VAC Reversing Magnetic Contactor 3P 18A NEMA 0 MPN:CN55BN3AB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3709727

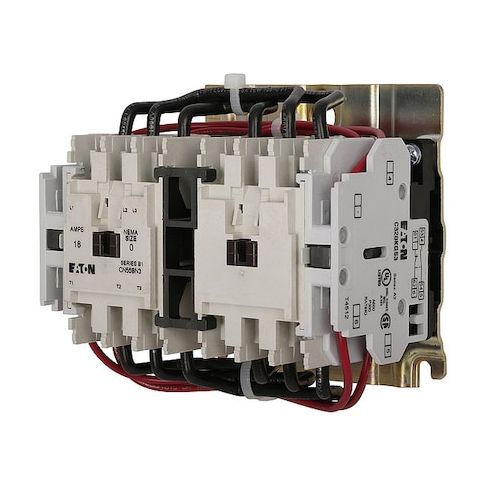

120VAC Reversing Magnetic Contactor 3P 18A NEMA 0
The Eaton 120VAC Reversing Magnetic Contactor is a reliable and efficient solution for controlling three-phase AC motors in industrial applications. With a reversing capability and 18A full load current, it's ideal for applications requiring frequent motor direction changes. The contactor's compact design and screw terminal connections make it easy to integrate into existing systems. Its use in applications such as conveyor systems, pumps, and fans enables efficient and safe motor control. The contactor's high horsepower ratings (3hp @ 240V, 5hp @ 480V) make it suitable for a wide range of industrial applications, from small to medium-sized equipment.
Top product features:
- Reversing Capability allows the product to switch direction of operation.
- Form 1NO/1NC auxiliary contact provides a separate control circuit.
- Screw Terminals enable easy and secure connection of wires.
Top product applications:
- Industrial Control Panel
- Automotive Manufacturing Line
- Oil Refinery Process Control
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size 0, Coil Voltage 110/120V AC, Number of Poles 3, Full Load Current - Inductive 18 A, Reversing Capability Reversing, Overall Height 3.88 in, Overall Width 1.75 in, Terminal Connection Type Screw Terminals, Frame Size B, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 2, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 3 hp, Horsepower @ Three Phase - 480V AC 5 hp
Additional Information
- Country of Origin: DO
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 5.30
- Package Height: 5.10
- Package Weight: 2.80
Product info last updated on February 21, 2026 5:31pm UTC
Category: Industrial Electrical Controls and Automation
