208VAC Reversing Magnetic Contactor 3P 270A NEMA 5 MPN:CN55SN3E
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3708853

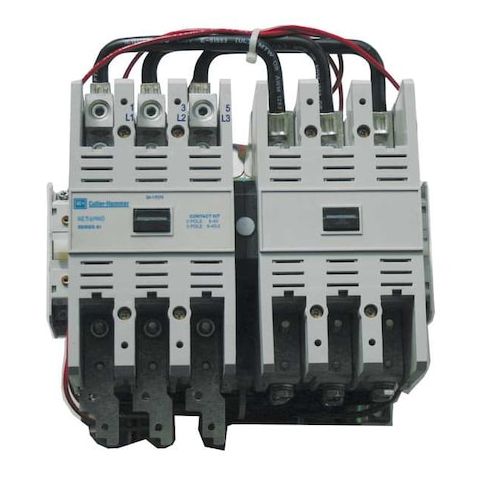

208VAC Reversing Magnetic Contactor 3P 270A NEMA 5
This 208VAC Reversing Magnetic Contactor from Eaton is a reliable and efficient solution for a variety of industrial applications. Featuring a 3-pole design with a 270A full load current, it can handle demanding inductive loads and provide smooth, reversing operation. The contactor is also equipped with two auxiliary contacts, making it ideal for use in control circuits. With a NEMA 5 enclosure and 208V AC coil voltage, it's suitable for use in a range of settings, including manufacturing, oil and gas, and water treatment plants, where high horsepower ratings are required.
Top product features:
- Reversing Capability
- Three-phase operation up to 100 hp at 240V AC or 200 hp at 480V AC
- Two auxiliary contacts with 1NO/1NC configuration
Top product applications:
- Motor control for a 100 hp three-phase AC motor at 240V AC
- Motor control for a 200 hp three-phase AC motor at 480V AC
- Power distribution for a large industrial electrical panel
NEMA Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size 5, Coil Voltage 208V AC, Number of Poles 3, Full Load Current - Inductive 270 A, Reversing Capability Reversing, Overall Height 13.12 in, Overall Width 7.05 in, Terminal Connection Type Screw Terminals, Frame Size S, Mounting Style Panel, Series Freedom, Number of Auxillary Contacts 2, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 100 hp, Horsepower @ Three Phase - 480V AC 200 hp
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 19 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.00
- Package Width: 17.50
- Package Height: 10.00
- Package Weight: 64.00
Product info last updated on April 14, 2026 7:22am UTC
Category: Industrial Electrical Controls and Automation
